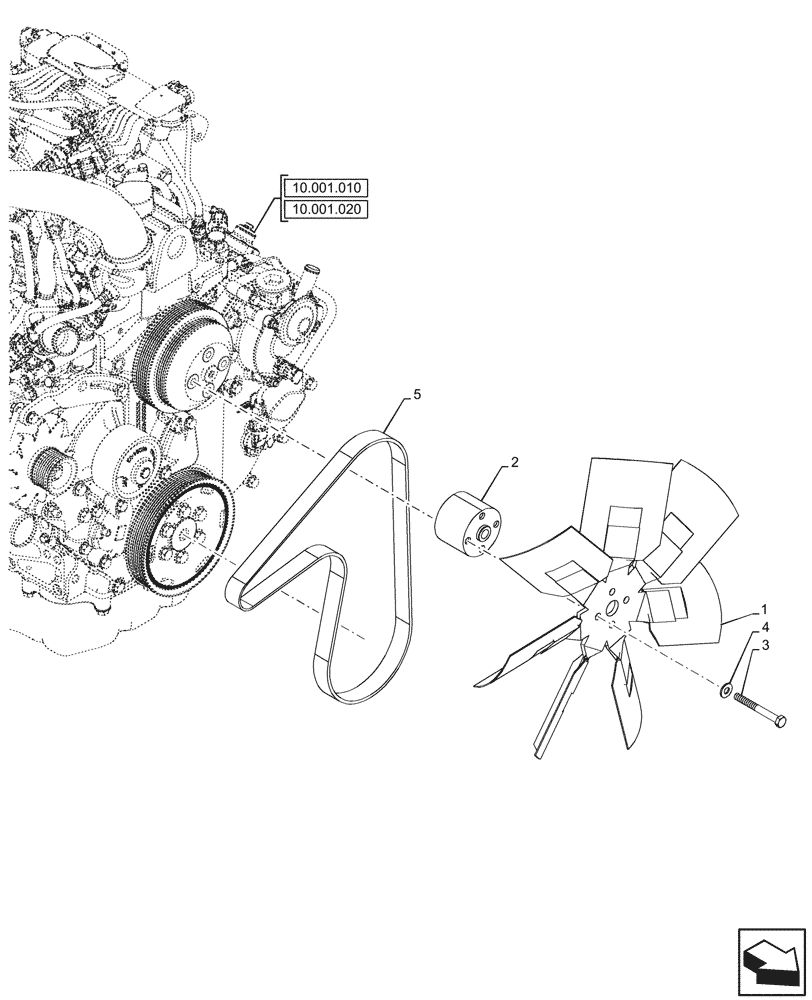

Запчасти Case 580N (10.414.030) - ENGINE, FAN, W/ AIR CONDITIONING (10) - ENGINE

1

228133A2

FAN,7 Blades, 20 OD, CW Rotation

39 Degrees

1шт.

2

87353191

SPACER

Fan

1шт.

3

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

4шт.

4

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

5

84278184

BELT,28.28mm W x 1470mm L, 8 Ribs

Mechanical Fan Drive

1шт.
