Запчасти Case 580N (10.400.100) - VAR - 423000, 442082, 747853, 747854, 747855 - RADIATOR, EXPANSION TANK, HOSE (10) - ENGINE

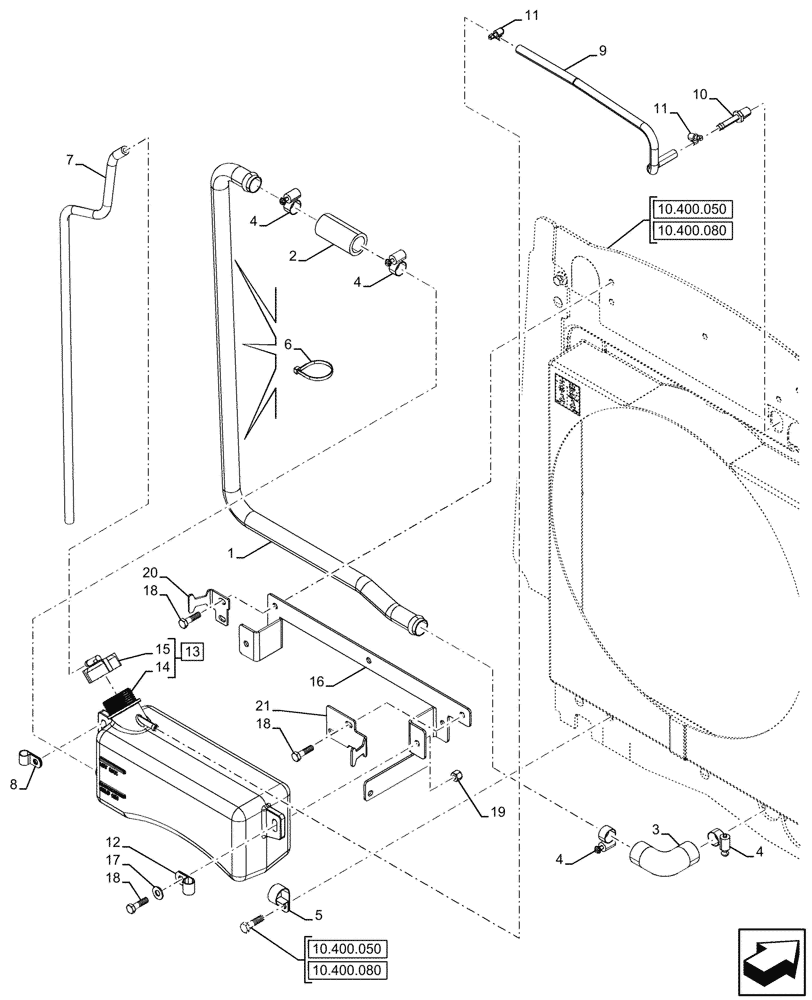

Схема запчастей Case 580N - (10.400.100) - VAR - 423000, 442082, 747853, 747854, 747855 - RADIATOR, EXPANSION TANK, HOSE (10) - ENGINE
10.400.080
18
1
9
11
16
15
18
6
7
4
4
21
17
10
4
18
4
3
2
20
5
11
12
19
14
8
13
10.400.050
10.400.050
10.400.080

Артикул

Название

Примечание

Количество

1

87557237

TUBE,1" OD

Radiator Fill

1шт.

2

87367622

HOSE,25.40 mm ID x 60.00 mm, SAE 20R3 CLASS D-1 Or D-2

Recovery Bottle

1шт.

3

87454376

HOSE,25mm ID, 29.95mm OD, 90 Degree

Deaeration Elbow

1шт.

4

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

5

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

7

87616934

HOSE,6.35mm ID x 750mm L, SAE 30R6

Radiator Bottle Overflow

1шт.

8

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

9

87715487

RADIATOR HOSE,7.90 mm ID x 440.00 mm, SAE J30, SAE 30R6 Or SAE 20 R4 Class D1

Cooling Package

1шт.

10

87301325

FITTING,5/16" Hose X 1/4" NPTF Beaded

1шт.

11

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

12

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

13

87674844

RESERVOIR, COOLANT E,3L

ASSY, Incl 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Deaeration Bottle, Incl in 13

1шт.

15

85803019

RADIATOR CAP

Coolant Overflow Tank, Pressurized

1шт.

16

87632870

BRACKET

Bottle Retaining

1шт.

17

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

18

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

7шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

20

87548813

BRACKET

RH, Support

1шт.

21

87548814

BRACKET

LH, Support

1шт.

Выбрано товаров: 21
