Запчасти Case 580N (10.400.090) - VAR - 423000, 442082, 747854 - RADIATOR, SUPPORT (10) - ENGINE

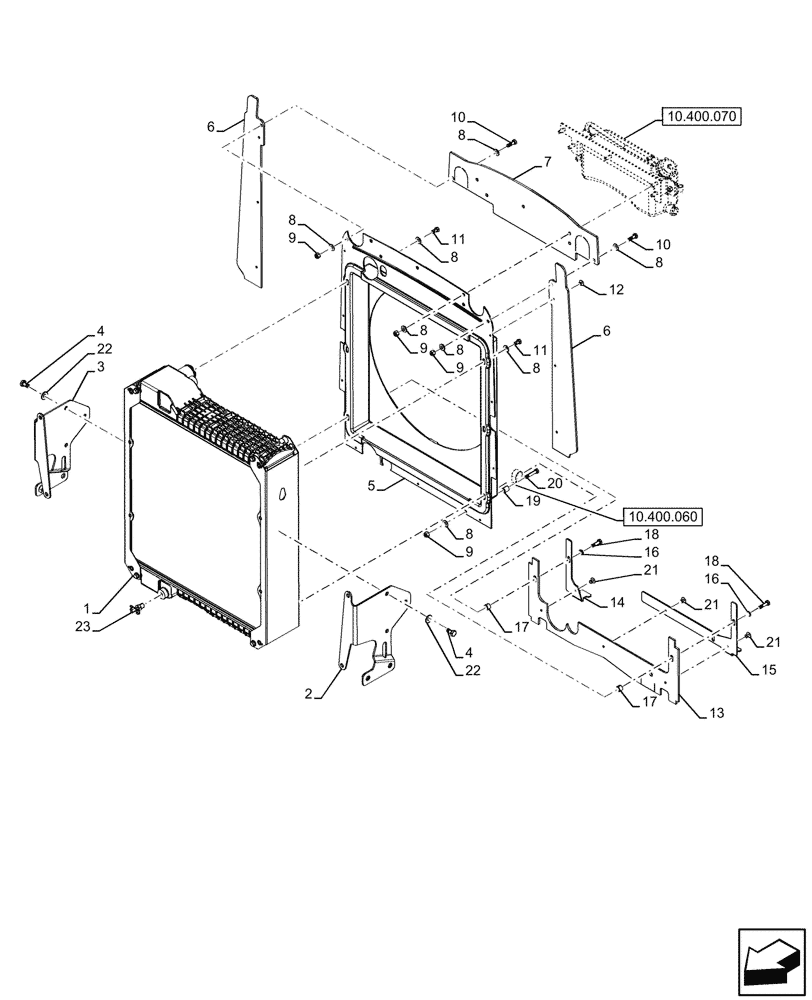

Схема запчастей Case 580N - (10.400.090) - VAR - 423000, 442082, 747854 - RADIATOR, SUPPORT (10) - ENGINE
10.400.060
16
2
8
12
21
18
10
17
18
20
8
9
11
22
19
15
4
8
13
21
9
10
16
8
5
22
6
1
9
8
8
21
9
7
8
17
6
4
11
8
14
23
3
10.400.070

Артикул

Название

Примечание

Количество

1

87576643

RADIATOR

3 ROW 9 FPI

1шт.

2

87602287

BRACKET

LH, Radiator Support

1шт.

3

87602286

BRACKET

RH, Radiator Support

1шт.

4

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

5

87559003

SHROUD

Fan

1шт.

6

87628308

INSULATOR

Radiator, Side

2шт.

7

87628324

SEAL,614mm L

Radiator, Top

1шт.

8

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

14шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

11

806-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9

4шт.

12

87301355

RIVET,Pop, 3/16" x .575"

6шт.

13

87434978

INSULATOR

Radiator, Lower

1шт.

14

87446081

RETAINING PLATE,195mm x 62mm x 43mm L

RH, Lower Shroud

1шт.

15

87446082

RETAINING PLATE,390mm x 195mm x 43mm L

LH, Lower Shroud

1шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

17

407962A1

SPACER,9.8mm ID x 12.9mm OD x 11mm L

2шт.

18

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

19

87418360

SPACER,9.8mm ID x 16mm OD x 16mm W

1шт.

20

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

1шт.

21

87301356

RIVET,Pop, 3/16" x .700"

3шт.

22

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

23

47819617

DRAINCOCK/TAP SUPPLY

1шт.

Выбрано товаров: 23
