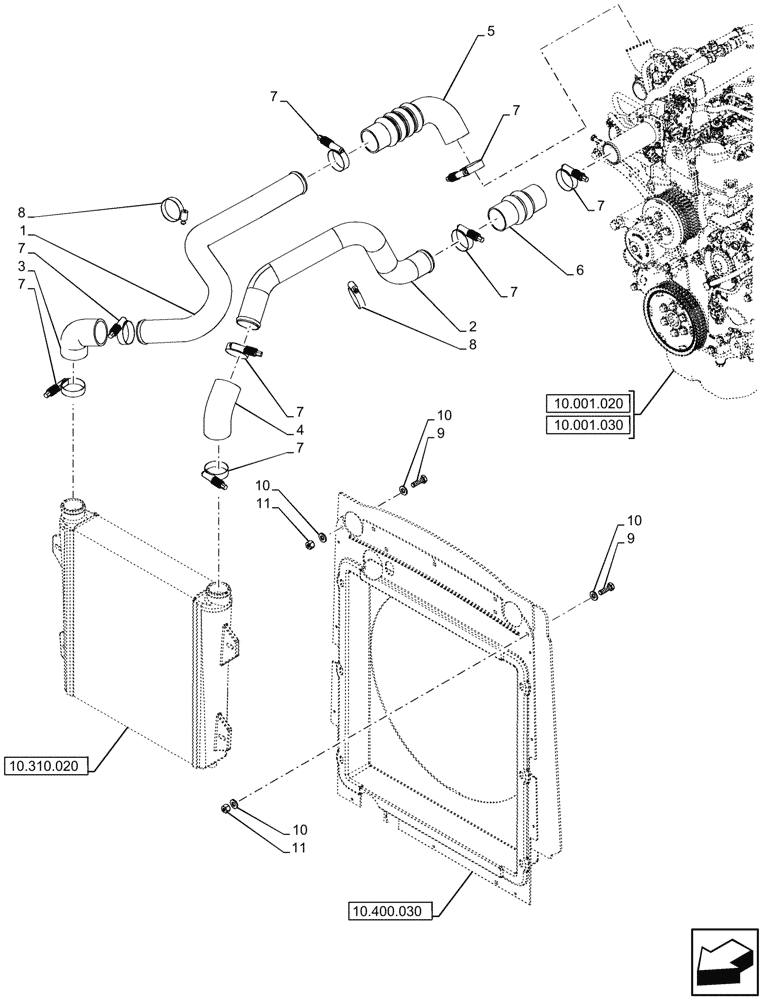

Запчасти Case 580N (10.310.010) - RADIATOR HOSE (10) - ENGINE

1

87554293

AIR INTAKE TUBE

1шт.

2

87525807

TUBE,50.8 mm OD x 321.1, 316.2 mm L

1шт.

3

47373649

ELBOW,50.8mm ID x 121mm L

Inlet, RH

1шт.

4

47373646

ELBOW,50.8mm ID x 121mm L

Outlet, LH

1шт.

5

87367626

AIR HOSE,50.8mm ID x 210mm L, Rubber

1шт.

6

86994498

AIR HOSE,50.80 mm ID x 127.00 mm

1шт.

7

254026A1

HOSE CLAMP,44.45mm - 66.67mm

8шт.

8

87647029

HOSE CLAMP,40-64mm

2шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

10

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.
