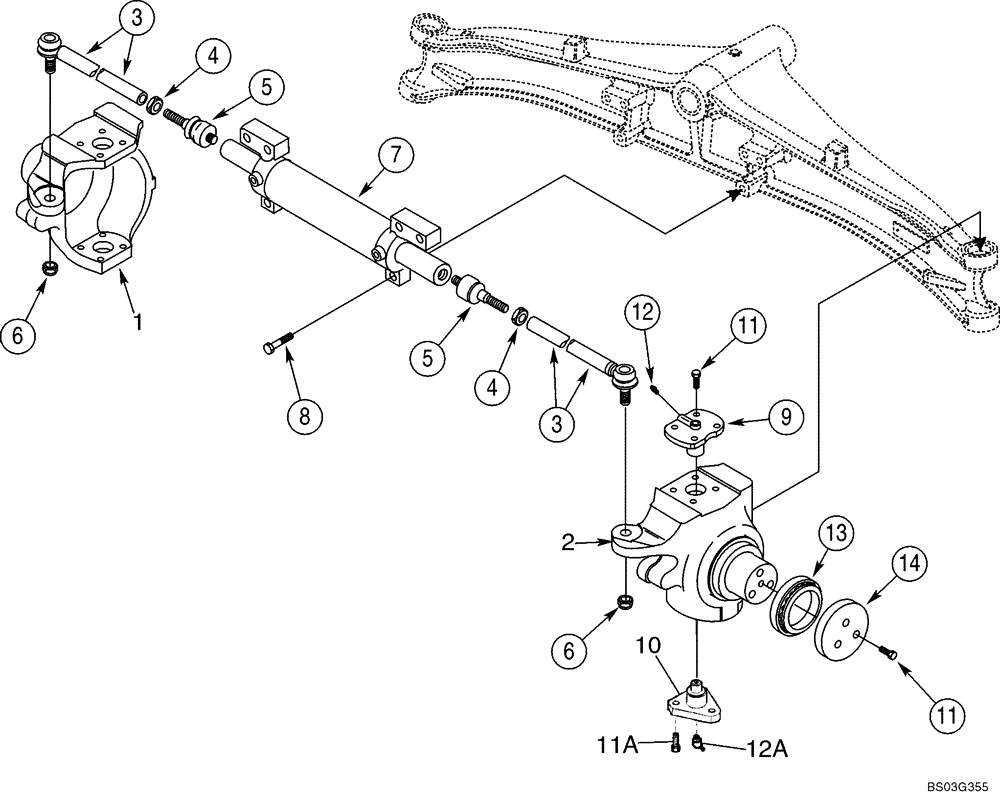

86990837
AXLE
Front, Two Wheel Drive, Incl. 1 - 14; Also Includes Parts On Figures 05-05 - 05-08
1шт.
1
429231A1
STEERING KNUCKLE,RH
Swivel, Left-Hand
1шт.
2
429232A1
STEERING KNUCKLE,LH
Swivel, Right-Hand
1шт.
401052A1
STEERING ASSY
Arm, Incl. Ref 3 - 5
2шт.
3
401054A1
TIE-ROD,34mm OD x 260mm L
1шт.
4
934727R1
THIN NUT,Thin, M18 x 1.5, Cl 04
1шт.
5
112509A1
BALL JOINT
1шт.
6
905839R1
LOCK NUT,M18 x 1.5, Thin
2шт.
7
401055A1
STEERING CYLINDER
(Two Wheel Drive) See Figure 05-07
1шт.
8
863-16070
HEX SOC SCREW,M16 x 70mm, Cl 12.9
6шт.
9
122265A1
PIN,35mm / 45mm OD x 45.5mm L
King, Upper
2шт.
10
122259A1
PIVOT,120mm OD, 15mm ID, 5mm L
King Pin, Lower; Triangular Shape
2шт.
11
100533A1
BOLT,Self-Lock, M12 x 30mm
Lock
14шт.
11a
D150214
BOLT,Lock, Hex, M14 x 2 x 35mm, Cl 10.9
Lock, Lower King Pin
6шт.
12
321204
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
2шт.
12a
N13505
LUBE NIPPLE,45 Degree, M6 x 1
Lower King Pin
2шт.
13
401059A1
THRUST BEARING
Thrust
2шт.
14
401060A1
THRUST WASHER
2шт.
