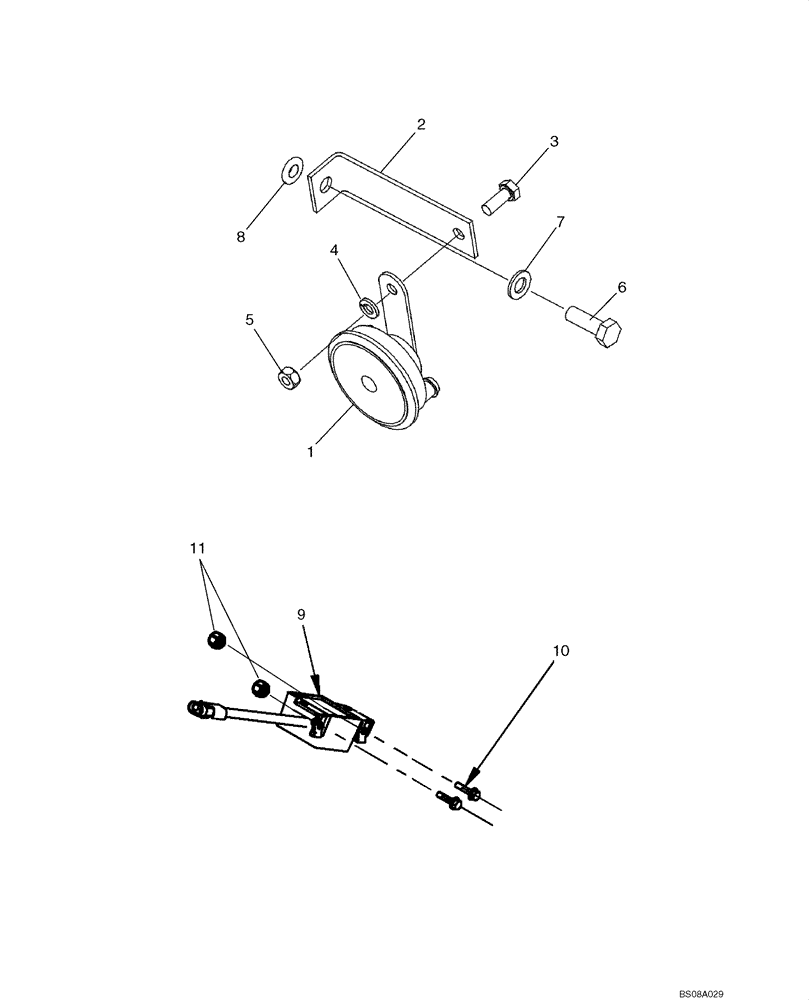

Запчасти Case 580M (04-16) - HORN - ALARM, BACKUP (04) - ELECTRICAL SYSTEMS

1

237582A1

HORN

Black

1шт.

2

87423496

BRACKET

1шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

4

892-11008

LOCK WASHER,8mm ID

1шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

6

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

8

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

M10

1шт.

9

87528887

ALARM

Backup; Includes Wire

1шт.

10

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

11

833-40406

NUT,M6, U

2шт.

12

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

3шт.

13

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

1шт.

14

87477365

BRACKET, SUPPORTING

1шт.

15

87470931

HORN

Back-Up

1шт.

16

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

19

87477352

HARNESS

1шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Black 7-8" Nylon

1шт.

21

84241438

KIT

Back-Up Alarm

1шт.
