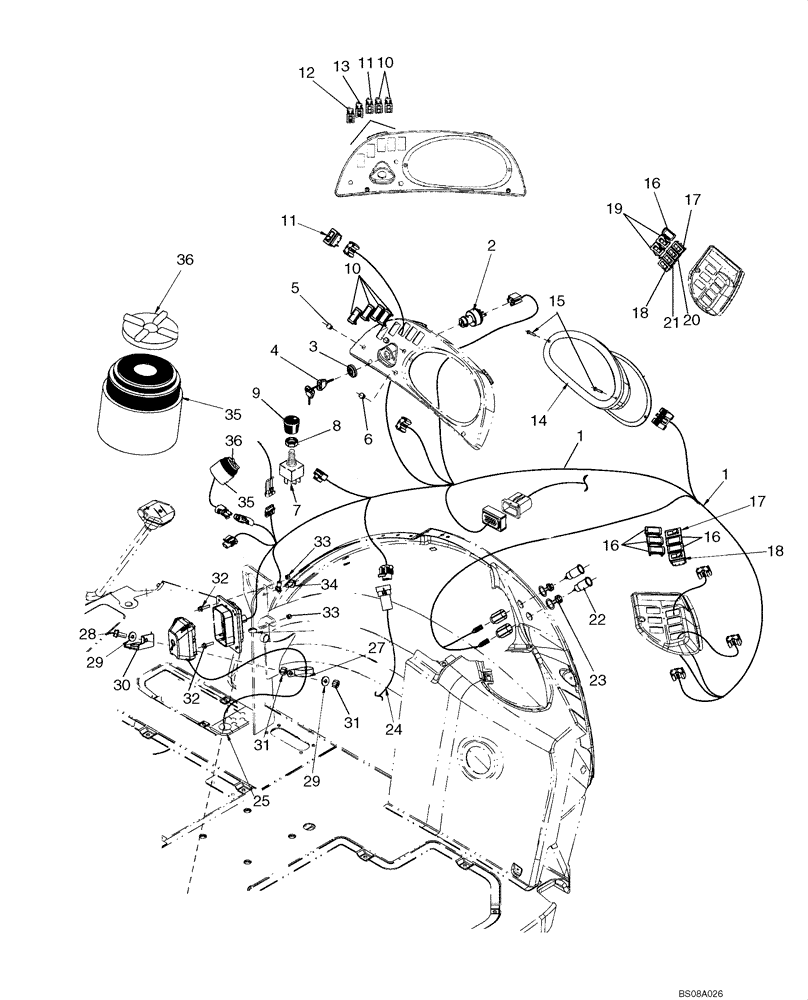

Запчасти Case 580M (04-09) - HARNESS, SIDE CONSOLE - SWITCHES (04) - ELECTRICAL SYSTEMS

1

87726595

WIRE HARNESS

Side Console Harness

1шт.

282775A1

IGNITION SWITCH

Incl. Ref 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Switch, Without Keys

1шт.

3

NSS

NOT SOLD SEPARAT

Nut

1шт.

4

1964831C2

IGNITION KEY

Padded

1шт.

5

397569A1

PLUG

7/16 in, Dome, If Used; For Air Conditioning Switch and Knob; See Figure 09-65

2шт.

6

397570A1

PLUG

1/2 in, Dome, If Used; For Heater Switch and Knob; See Figure 09-64

1шт.

7

245258A1

ROTARY SWITCH

Blower

1шт.

121415A1

FUSE,25A, Mini, Clear

Blower

1шт.

8

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

1шт.

9

400379A1

KNOB,23mm

1шт.

10

86000535

PLUG,1.427" x .62", Plastic

If Used

2-4шт.

11

87614808

ROCKER SWITCH

Parking Brake

1шт.

12

133716A1

ROCKER SWITCH

Four Wheel Drive, If Used

1шт.

121412A1

FUSE,10A, Mini, Red

Four Wheel Drive

1шт.

13

235002A1

ROCKER SWITCH

Ride Control, If Used

1шт.

121413A1

FUSE,15A, Mini, Blue

Ride Control

1шт.

14

87521766

MILES COUNTER DEVICE

Instrument Cluster; See Figure 04-12

1шт.

87521766R

REMAN-INSTR CLUSTER

580M SERIES 3 TIER 3 (2/08-)

1шт.

87521766C

CORE-CLUSTER, INSTR

Return Number

1шт.

15

140-119

SCREW,Cross Pan Hd, #10 - 24 x 1 1/4"

2шт.

16

86000535

PLUG,1.427" x .62", Plastic

If Used

1-5шт.

17

133715A1

LIGHT SWITCH

Rear Work Lights

1шт.

18

386852A2

SWITCH

Rear Horn

1шт.

19

386789A2

SWITCH

Backhoe Quick Coupler, If Used

2шт.

20

386788A1

WINDSHIELD WIPER SWI

Rear Wndshield Washer; If Used

1шт.

21

386786A1

ROCKER SWITCH

Rear Wiper; If Used

1шт.

22

283779A1

POWER SOCKET,12V

30 amp Maximum

2шт.

23

283781A1

CAP,Polyester Elastomer

Power Plug Outlet

2шт.

24

87726574

WIRE HARNESS

Side Options Harness

1шт.

25

NSS

NOT SOLD SEPARAT

Harness, Loader Control Lever; Included In Loader Control Lever Handle

1шт.

27

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

1шт.

28

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

29

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

30

87700144

BRACKET, SUPPORTING

Alarm

2шт.

31

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

32

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

33

832-10406

NUT,M6 x 1, Cl 8

2шт.

34

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

35

87527167

HORN,5-15V

Alarm, Warning

1шт.

36

87539792

COVER

For Muting Audible Alarm, Cab Models Only

1шт.

87726573

WIRE HARNESS

Chassis Options Harness

1шт.
