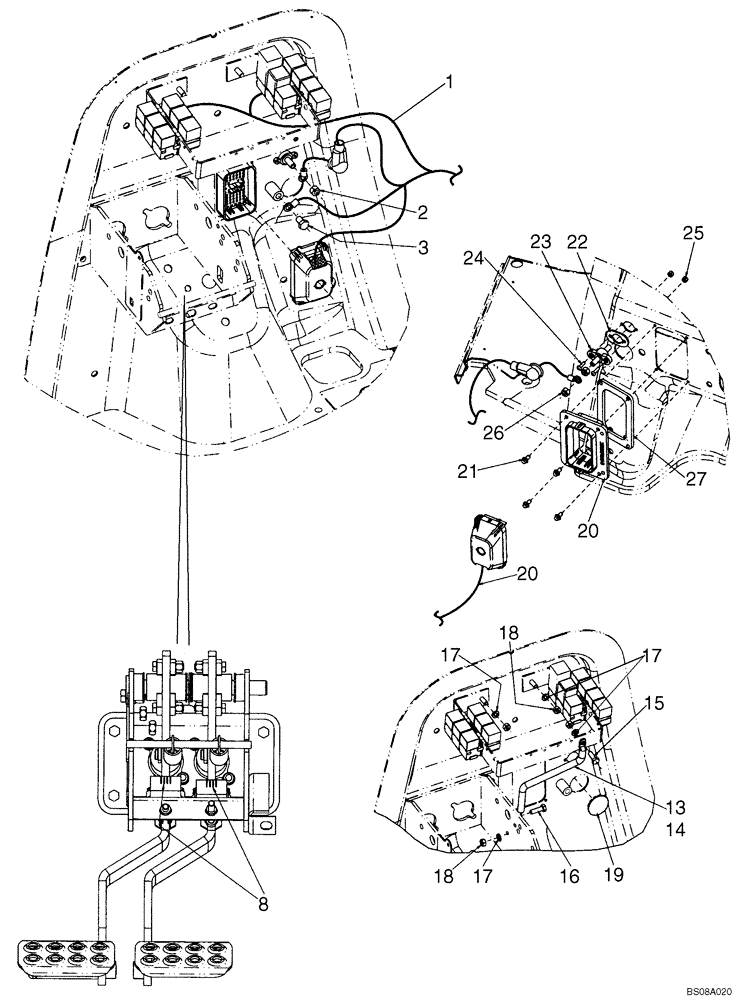

Запчасти Case 580M (04-08) - HARNESS, FRONT CONSOLE - MOUNTING (04) - ELECTRICAL SYSTEMS

1

87726592

WIRE HARNESS

Front Console Harness; Mounts To Front Firewall

1шт.

2

425-106

NUT,3/8"-16, Cl 5

1шт.

3

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

M10 x 15; Mounts To Front Firewall

1шт.

8

82026949

PUSH BUTTON SWITCH

Brake

2шт.

13

362930A2

BRACKET

Relay Mounting

1шт.

14

392353A1

CONDUIT

1шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

16

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

17

892-11008

LOCK WASHER,8mm ID

4шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

19

397876A1

PLUG

1-5/8 in, Button

1шт.

20

87726584

WIRE HARNESS

Engine, Main Chassis

1шт.

21

781-24613

SELF-TAP SCREW,Hex Flg, M6 x 1 x 13mm

4шт.

22

357966A1

GASKET,50mm L x 32mm L

1шт.

23

357278A1

ISOLATOR

Positive Battery

1шт.

24

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

2шт.

25

231-24409

NUT,#10-32

2шт.

26

425-106

NUT,3/8"-16, Cl 5

2шт.

27

87649405

GASKET,128mm L x 94mm L x 6mm L

1шт.
