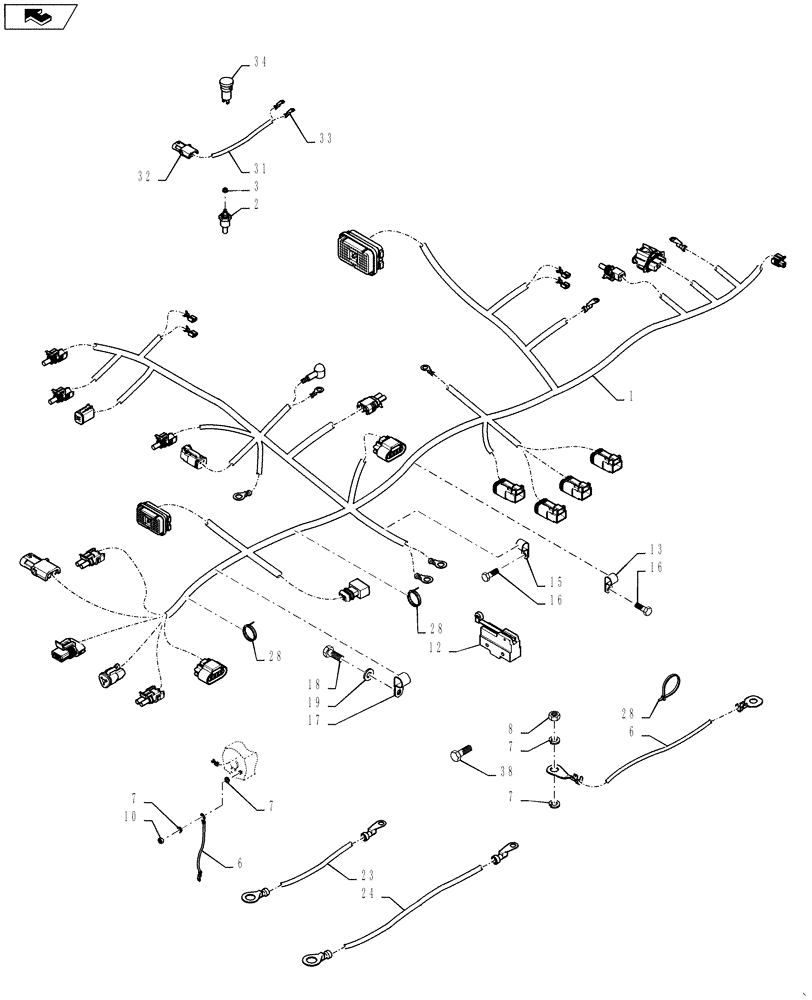

Запчасти Case 580M (04-04) - HARNESS, ENGINE - MOUNTING AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

87726584

WIRE HARNESS

Main Chassis

1шт.

2

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Transmission

1шт.

3

193-1000

NUT,Keps, w/LW,#10-32

1шт.

6

87423926

ELECTRIC CABLE,675mm L

Alternator

1шт.

7

493-21033

LOCK WASHER,Int Tooth, 5/16"

2шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

12

D137363

SWITCH

Return To Dig; For Mounting; See Figure 09-04

1шт.

13

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

16

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

17

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

18

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

23

87419229

WIRE HARNESS,1000mm L

Power Wire

1шт.

24

381261A1

ELECTRICAL WIRE

WIRE Cab Ground Cable

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

31

123809A2

WIRE HARNESS

Clutch Cutout; Transmission Gear Shift Lever; Incl Ref 31A, 31B

1шт.

31a

246526A1

CONNECTOR, ELEC

CONNECTOR Not Illustrated

1шт.

31b

NSS

NOT SOLD SEPARAT

Eye; Not Illustrated

2шт.

32

87312712

SWITCH

Push Button; Clutch Cutout; Transmission Gear Shift Lever; For Lever and Knob, See Figure 06-12;

1шт.

38

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

1шт.
