(03-05) - FUEL INJECTION SYSTEM

Запчасти Case 580M (03-05) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

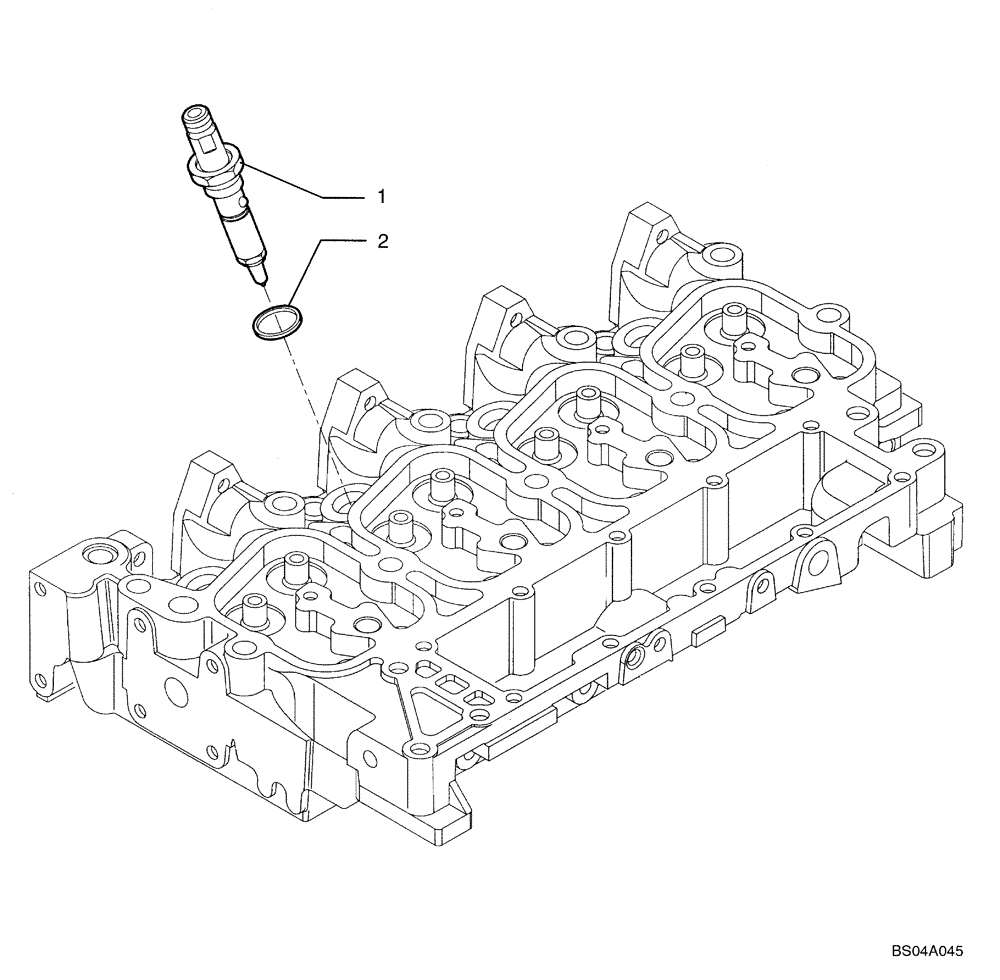

Схема запчастей Case 580M - (03-05) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2856255

FUEL SYSTEM INJECTOR

Fuel Injector Assembly

4шт.

1

2856255R

REMAN-FUEL INJECTOR

Reman for new PN 2856255

4шт.

1

2856255C

CORE-FUEL INJECTOR

Return Number

4шт.

2856436

SEALING WASHER,7.3mm ID x 15mm OD x 1.5mm Thk

Washer (Part of 2856255), Not Shown

1шт.

2

4895297

SEAL,7.3mm ID x 15mm OD x 2.5mm THK

4шт.

Выбрано товаров: 5
