(03-04) - FUEL INJECTION PUMP

Запчасти Case 580M (03-04) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

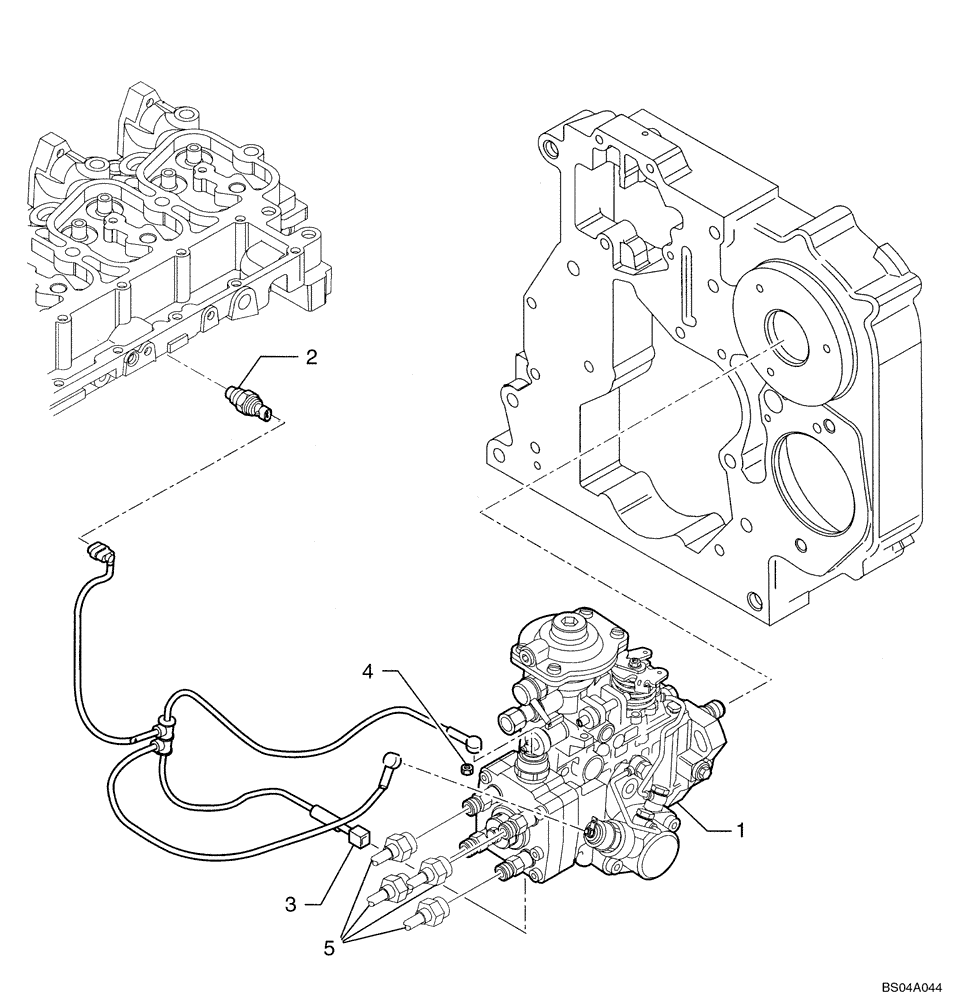

Схема запчастей Case 580M - (03-04) - FUEL INJECTION PUMP (03) - FUEL SYSTEM
4
3
1
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2856352

FUEL INJECTION PUMP

Includes 2852741 Fuel Shutoff Solenoid

1шт.

1

2856352R

REMAN-INJECTION PUMP

580M SERIES 3, TIER 3

1шт.

1

2856352C

CORE-INJECTION PUMP

Return Number

1шт.

2852741

SOLENOID

Fuel Shut-off

1шт.

2

2856350

SENSOR

Water

1шт.

3

2852088

WIRE HARNESS

1шт.

4

2852089

NUT,M5

2шт.

5

REF

INSTRUCTION

TUBE; See Figure 03-07 for Tube Kit

1шт.
