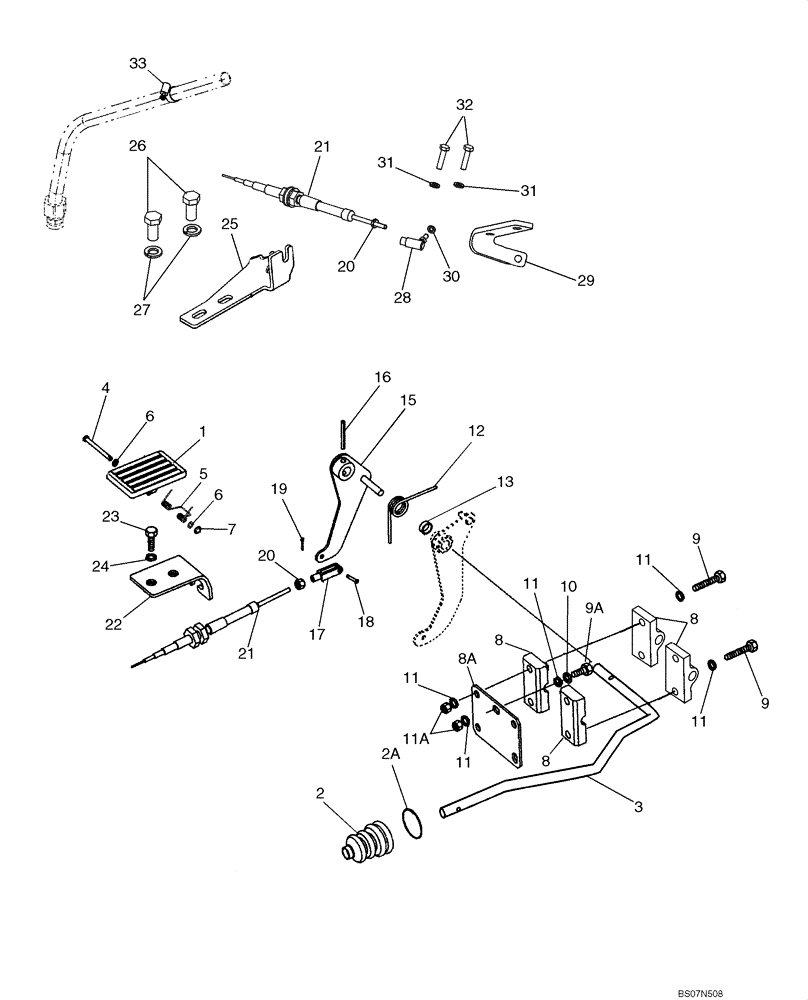

Запчасти Case 580M (03-03) - CONTROLS - THROTTLE, FOOT (03) - FUEL SYSTEM

1

282242A1

PEDAL

Plastic

1шт.

2

132931A1

BOOT

Accelerator Pedal Rod

1шт.

2a

189109A1

SPRING,Compression, 42mm OD

Retainer

1шт.

3

87593642

ROD,12.7mm OD

1шт.

4

322860A1

PIN,7.9mm OD x 55.6mm L

1шт.

5

256776A1

SPRING

1шт.

6

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

7

103-1518

SNAP RING,#18, Ext

1шт.

8

87345006

BLOCK

Throttle Pivot

1шт.

8a

378955A1

PLATE

1шт.

9

87378776

BOLT,Hex, M8 x 30mm, Cl 8.8

Special; M8 x 30

4шт.

9a

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

10

892-11008

LOCK WASHER,8mm ID

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

11a

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

12

380483A2

SPRING

1шт.

13

378958A1

SPACER, RING

1шт.

15

378956A3

LEVER ASSY.

1шт.

16

838-3640

PIN,M6 x 40, Coiled

1шт.

17

213-123

ADJUSTABLE CLEVIS,#10-32 x 1 9/16"

1шт.

18

427-3058

CLEVIS PIN,3/16" x .580"

1шт.

19

432-48

COTTER PIN,1/16" x 1/2"

1шт.

20

225-14210

NUT,#10-32

2-3шт.

21

87340754

CABLE,1829mm L

To Injection Pump

1шт.

22

397065A2

BRACKET

1шт.

23

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

24

892-11010

LOCK WASHER,M10

2шт.

25

87648733

BRACKET, SUPPORTING

1шт.

26

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

27

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

28

87421807

JOINT ASSY.

1шт.

29

87452823

BLOCK ASSY.

BRACKET, Throttle Cable

1шт.

30

892-11005

LOCK WASHER,M5

1шт.

31

892-11006

LOCK WASHER,M6

2шт.

32

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

33

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Throttle Cable (Ref 21) To Transmission Dipstick

1шт.
