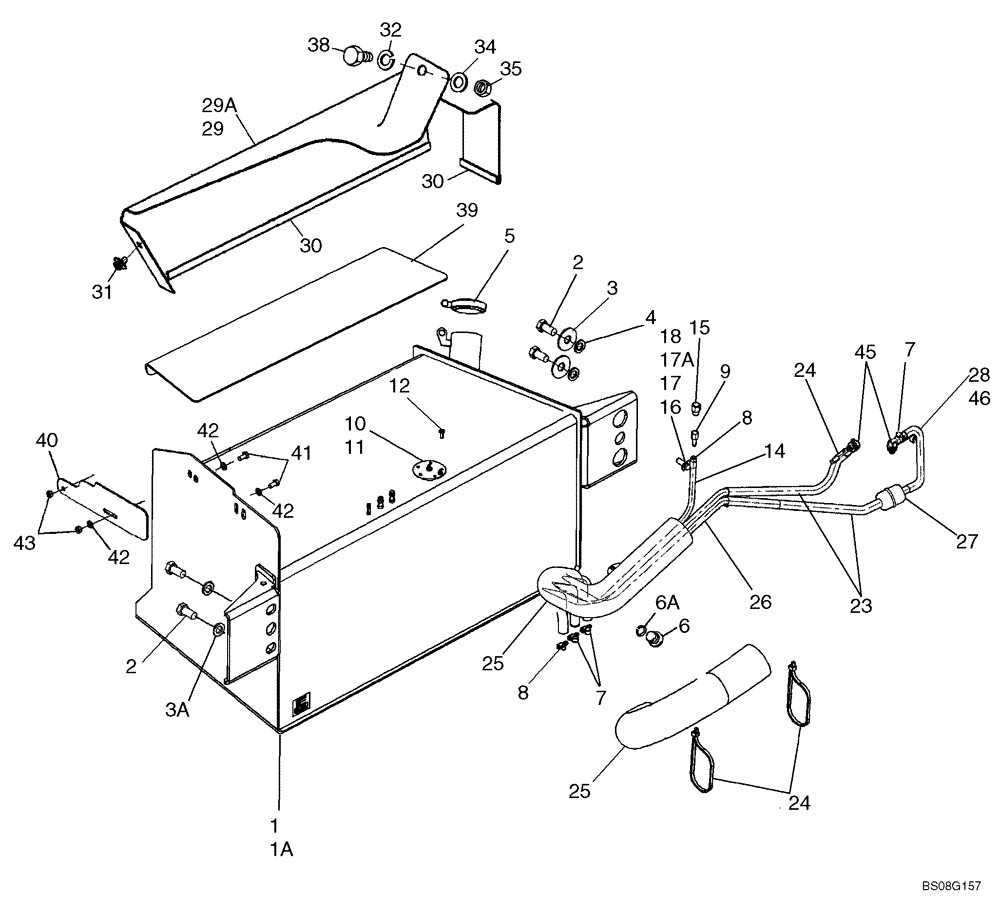

Запчасти Case 580M (03-01) - FUEL LINES, RESERVOIR (03) - FUEL SYSTEM

1

87429310

FUEL TANK

31 gal; Incl. Ref 6; With Welded Fuel Sender Tubes; Includes Left Hand Steps, Mounts to Left Hand Side of Chassis

1шт.

1a

87429314

FUEL TANK

40 gal; Incl. Ref 6; Optional; With Welded Fuel Sender Tubes; Includes Left Hand Steps, Mounts to Left Hand Side of Chassis; If Used

1шт.

2

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

4шт.

3

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

2шт.

3a

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

2шт.

4

185926A1

SPACER,21mm x 40mm x 6.6mm Th

21 ID x 40 OD x 6.6 mm thk

2шт.

5

87335469

LOCKABLE FUEL CAP,Male, Lockable

1шт.

6

86625138

PLUG,7/18" - 14

Drain, Includes Ref. 6A; Included with Ref 1, 1A

1шт.

6a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

6шт.

8

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

9

217-117

FITTING,1/4" Hose x 1/4" NPTF, Fem, Barbed

Brass

1шт.

10

86989676

SENDER UNIT

Fuel Level, 31 Gallon Tank, Without Tubes, Includes Seal and Grounding Hardware, If Used

1шт.

11

87408480

SENDER UNIT

Fuel Level, 40 Gallon Tank, Without Tubes, Includes Seal and Grounding Hardware, If Used

1шт.

12

87693492

SCREW,#10 - 32 x 5/8mm, Stainless

5шт.

14

87656146

FUEL HOSE,6.35 mm ID x 880.00 mm

Vent

1шт.

15

130047A1

BREATHER ASSY.

Vent

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

17

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

17a

892-11008

LOCK WASHER,8mm ID

1шт.

18

87417383

THREADED INSERT,M8 x 1.25

M8 Nut

1шт.

23

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

2шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

6шт.

25

87656501

HOSE PROTECTION,340.00 mm ID x 540.00 mm

1шт.

26

87658696

FUEL HOSE,9.53 mm ID x 1315.00 mm, SAE 30R7

Inlet and Return

1шт.

27

D139225

FILTER, FUEL

Inline

1шт.

28

87739247

HOSE,9.53mm ID x 375mm L, SAE 30R7

1шт.

29

189602A3

COVER

Mounted Above Fuel Reservoir; Models With Two Spool Loader Valve

1шт.

29a

188009A3

COVER

Mounted Above Fuel Reservoir, Models With Three Spool Loader Valve

1шт.

30

191046A1

ORNAMENTAL STRIP

Trim, 650 mm (25-5/8 in), Cut From A165860; Apply 65 mm (2-9/16 in) of Trim to Front Lower Edge and 575 mm (22-11/16 in) of Trim to Outside Lower Edge of Cover

1шт.

31

307577A1

BOLT

Special, M8 x 20

1шт.

32

892-11010

LOCK WASHER,M10

1шт.

34

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

35

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

38

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

Models with Three Spool Loader Valve

1шт.

38

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Models with Two Spool Loader Valve

1шт.

39

87679228

ANTI-SKID STRIP

1шт.

40

397548A4

PLATE

Mud

1шт.

41

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

42

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

43

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

45

87414560

90 ELBOW

3шт.

46

87498489

HOSE PROTECTION

325 mm

1шт.
