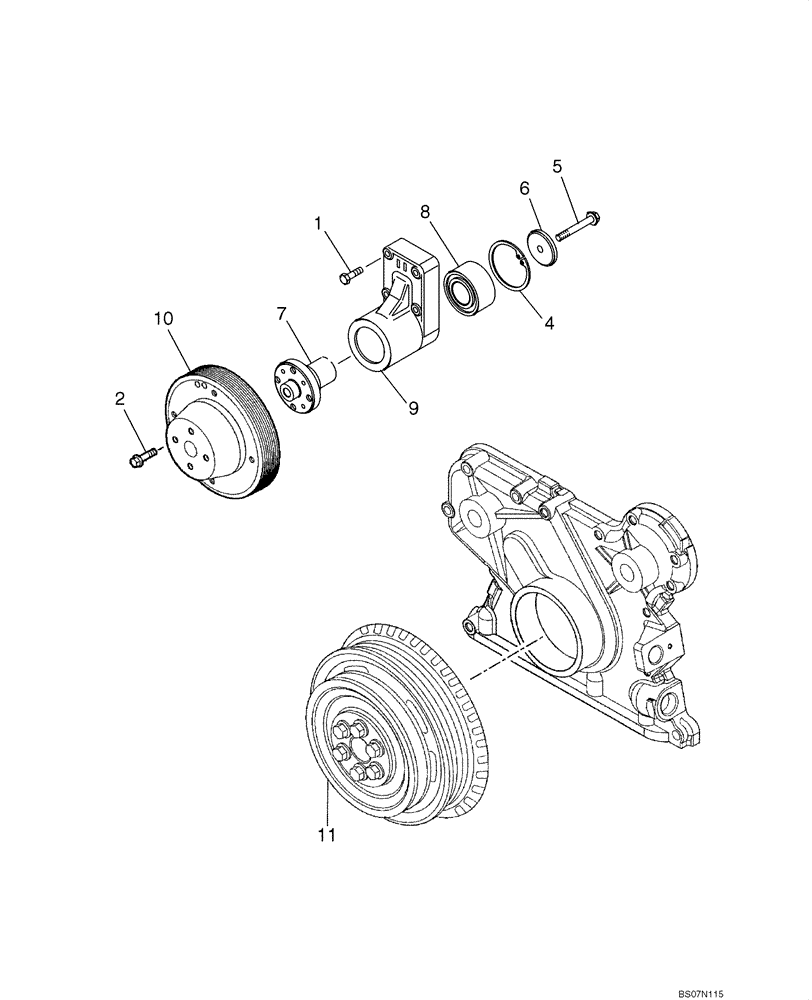

Запчасти Case 580M (02-39) - FAN DRIVE (02) - ENGINE

1

4899053

SCREW,Hex Flg, M8 x 45

4шт.

2

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

4шт.

3

2852170

SUPPORT

Incls. Refs. 4 - 9

1шт.

4

2852171

SNAP RING

1шт.

5

2852172

BOLT,Flng, M10 x 1.5 x 70mm

1шт.

6

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

1шт.

7

4892426

HUB

1шт.

8

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

Hub

1шт.

9

NSS

NOT SOLD SEPARAT

Support

1шт.

10

J914462

PULLEY,163mm OD

1шт.

11

REF

INSTRUCTION

CRANKSHAFT PULLEY; See Figure 02-25

1шт.
