Запчасти Case 580M (02-38) - WATER PUMP - CONTROL (02) - ENGINE

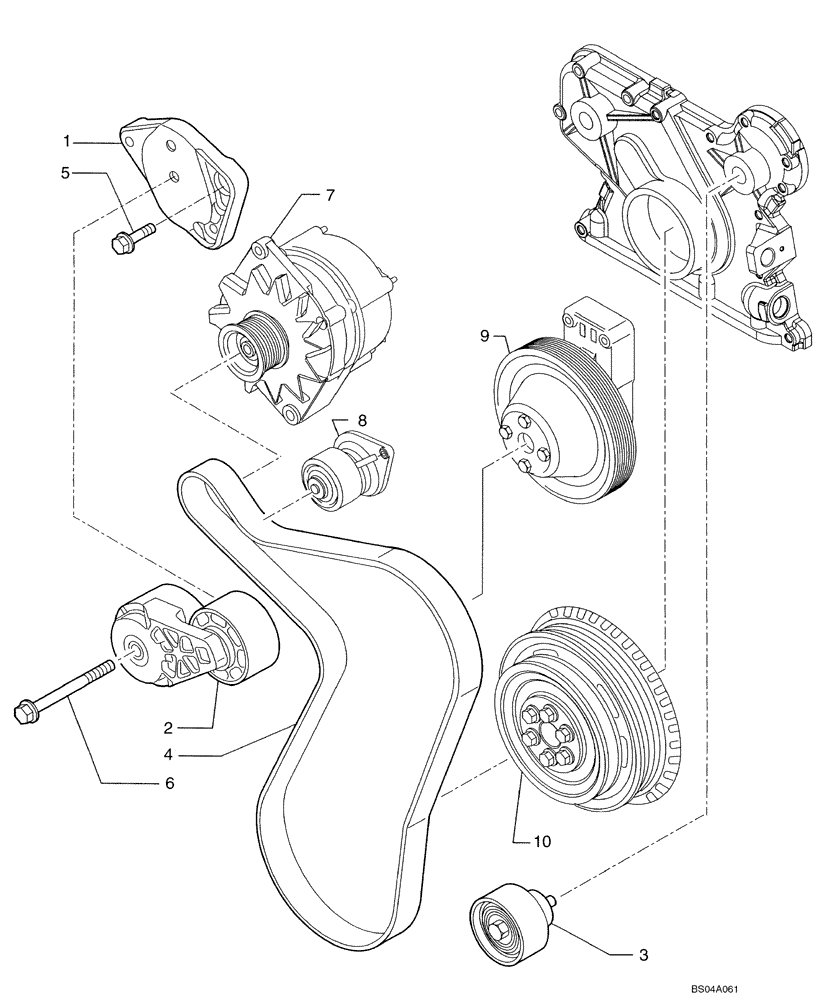

Схема запчастей Case 580M - (02-38) - WATER PUMP - CONTROL (02) - ENGINE
9
6
3
8
4
5
2
10
7
1

Артикул

Название

Примечание

Количество

2854611

PULLEY

Incls. 1, 2, 3, 5 & 6

1шт.

1

2852163

SUPPORT

Support

1шт.

2

2852161

BELT TENSIONER

1шт.

2

2855622

BELT TENSIONER

Alternate Part To 2852161

1шт.

3

2852162

PULLEY,65mm OD

Pulley

1шт.

4

REF

INSTRUCTION

BELT; See Figure 02-01

1шт.

5

4899079

SCREW,Hex Flg, M8 x 1.25 x 25

2шт.

6

4899109

SCREW,Hex, M10 x 1.5 x 80

1шт.

7

REF

INSTRUCTION

ALTERNATOR; See Figure 04-02

1шт.

8

REF

INSTRUCTION

WATER PUMP; See Figure 02-35

1шт.

9

REF

INSTRUCTION

FAN DRIVE; See Figure 02-39

1шт.

10

REF

INSTRUCTION

CRANKSHAFT PULLEY; See Figure 02-25

1шт.

Выбрано товаров: 12
