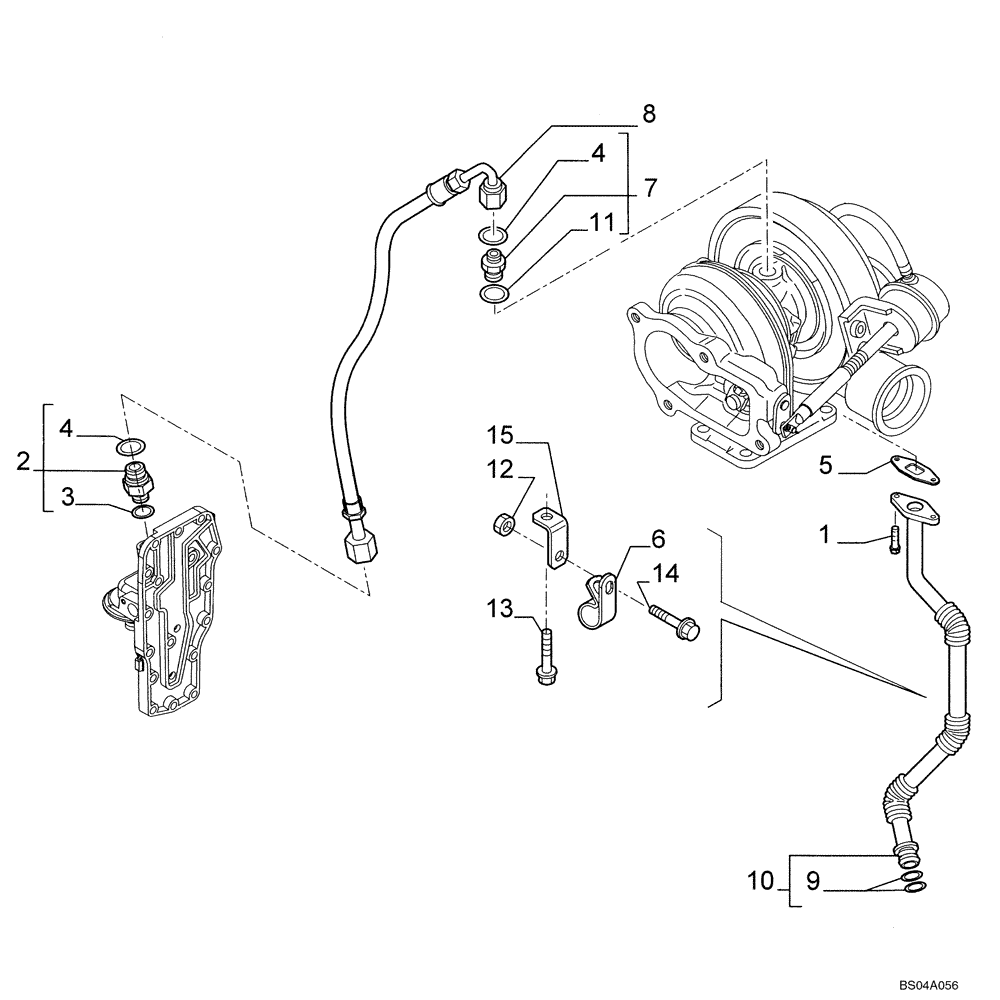

Запчасти Case 580M (02-33) - PIPING - ENGINE OIL (02) - ENGINE

1

4895164

SCREW,Hex, Flg Hd, M6 x 16

2шт.

2

4895107

HYD CONNECTOR,11/16"-16 x M12

Incl. Ref 3, 4

1шт.

3

4899107

O-RING,1.8mm Thk x 10.52mm ID

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

1шт.

5

4899467

GASKET

Oil Drain

1шт.

6

4899519

CLAMP,M16, M6 Bolt

1шт.

6

2854493

CLIP,15.88mm D Clamping Pipe

Alternate Part To 4899519, Bracket Clamp

1шт.

7

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

Incl. Ref 4, 11

1шт.

8

2852195

HYDRAULIC HOSE,6.4mm ID x 461mm L

1шт.

9

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

10

2852102

PIPE

Tube; Incl. Ref 9

1шт.

11

J932484

WASHER

1шт.

12

2852197

FLANGE NUT,M6 x 1

1шт.

13

2852101

FLANGE BOLT,Hex, M6 x 16mm

1шт.

14

16586225

BOLT,M8 x 16mm

Flange

1шт.

15

2852196

BRACKET

1шт.
