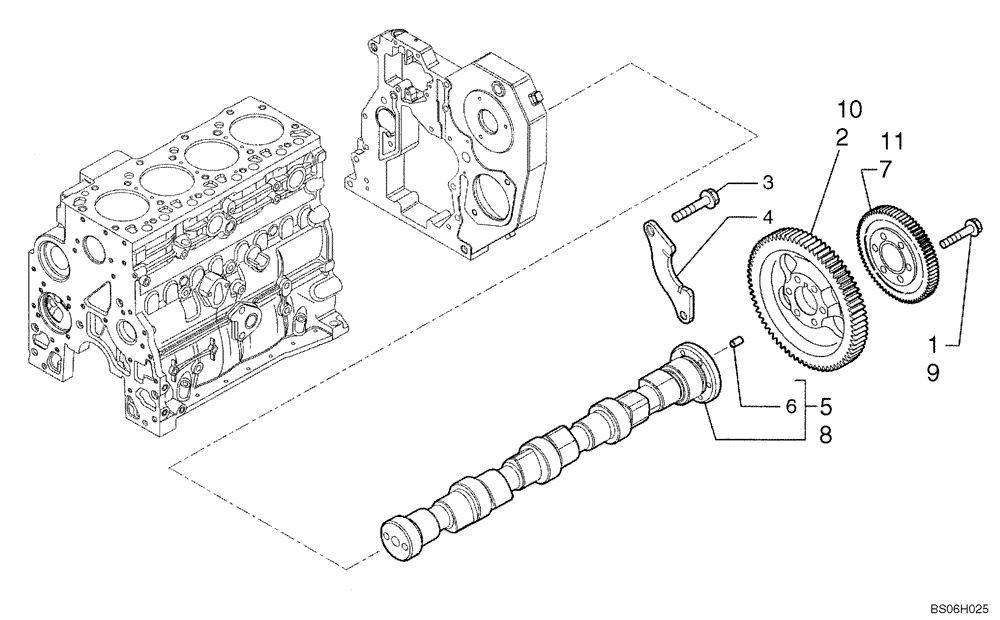

Запчасти Case 580M (02-28) - CAMSHAFT (02) - ENGINE

1

4895323

FLANGE BOLT,Hex, M8 x 1.25 x 40mm

6шт.

2

2852062

GEAR,72T

1шт.

3

4899068

BOLT,Flng, M8 x 1.25 x 16mm

2шт.

4

4897457

SUPPORT

1шт.

5

2856170

CAMSHAFT

Incl. Ref 6

1шт.

5

2856170R

REMAN-CAMSHAFT

580M, SERIES 3, LOADER BACKHOE, TIER 3 (NA)

1шт.

5

2856170C

CAMSHAFT

Return Number

1шт.

6

4899080

DOWEL,M6 x 8 L

Pin

1шт.

7

2855183

GEAR,72T

1шт.

84131040

SHORT ENGINE

Kit, Tier 3 Short Block; Includes All Items on Fig 02-09, Ref 1, 6 - 10 On Fig 02-10, Ref 1 - 4 On Fig 02-21, Ref 1, 4 On Fig 02-22, Ref 1 - 4 On Fig 02-23, And Ref 1 - 7 On Fig 02-28

1шт.

84131040R

1шт.

84131040C

Return Number

1шт.

84131040ER

REMAN-SHORT ENGINE

1шт.

84131040EPAC

CORE-SHORT ENGINE

Return Number

1шт.
