Запчасти Case 580M (02-22) - CONNECTING ROD (02) - ENGINE

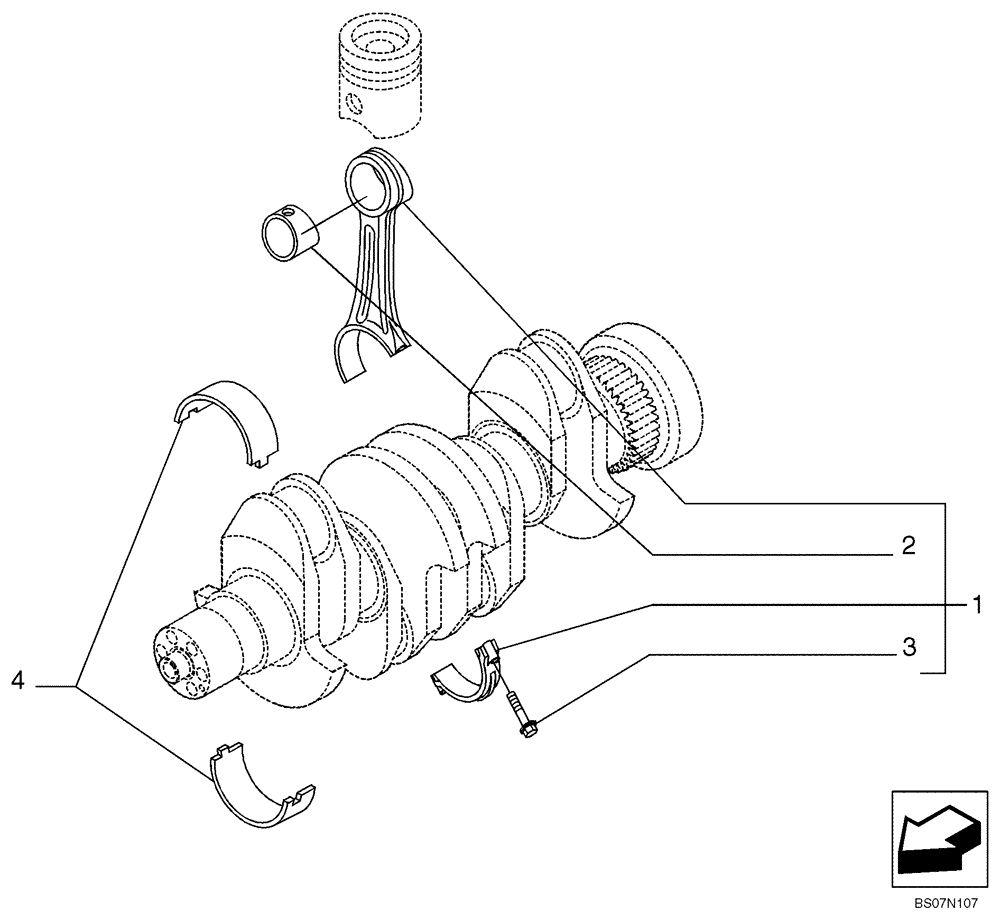

Схема запчастей Case 580M - (02-22) - CONNECTING ROD (02) - ENGINE
2
3
4
1

Артикул

Название

Примечание

Количество

1

2831298

CONNECTING ROD

Incl. 2, 3

4шт.

1

2831298R

REMAN-CONNECTING ROD

580M SERIES 3 TIER 3 ( 2/08 - )

4шт.

1

2831298C

CORE-ROD CONNECTING

Return Number

4шт.

2

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

4

8093882

BEARING SET

Standard

4шт.

4

8094960

BEARING SET,(-0.250)

.025 mm oversize

4шт.

4

8094961

BEARING SET,(-0.500)

.050 mm oversize

4шт.

84131040

SHORT ENGINE

Kit, Tier 3 Short Block; Includes All Items on Fig 02-09, Ref 1, 6 - 10 On Fig 02-10, Ref 1 - 4 On Fig 02-21, Ref 1, 4 On Fig 02-22, Ref 1 - 4 On Fig 02-23, And Ref 1 - 7 On Fig 02-28

1шт.

84131040R

1шт.

84131040C

Return Number

1шт.

84131040ER

REMAN-SHORT ENGINE

580M SERIES 3 LOADER BACKHOE TIER 3 (NA), Kit, Short Block (2/08-)

1шт.

84131040EPAC

CORE-SHORT ENGINE

Return Number

1шт.

Выбрано товаров: 13
