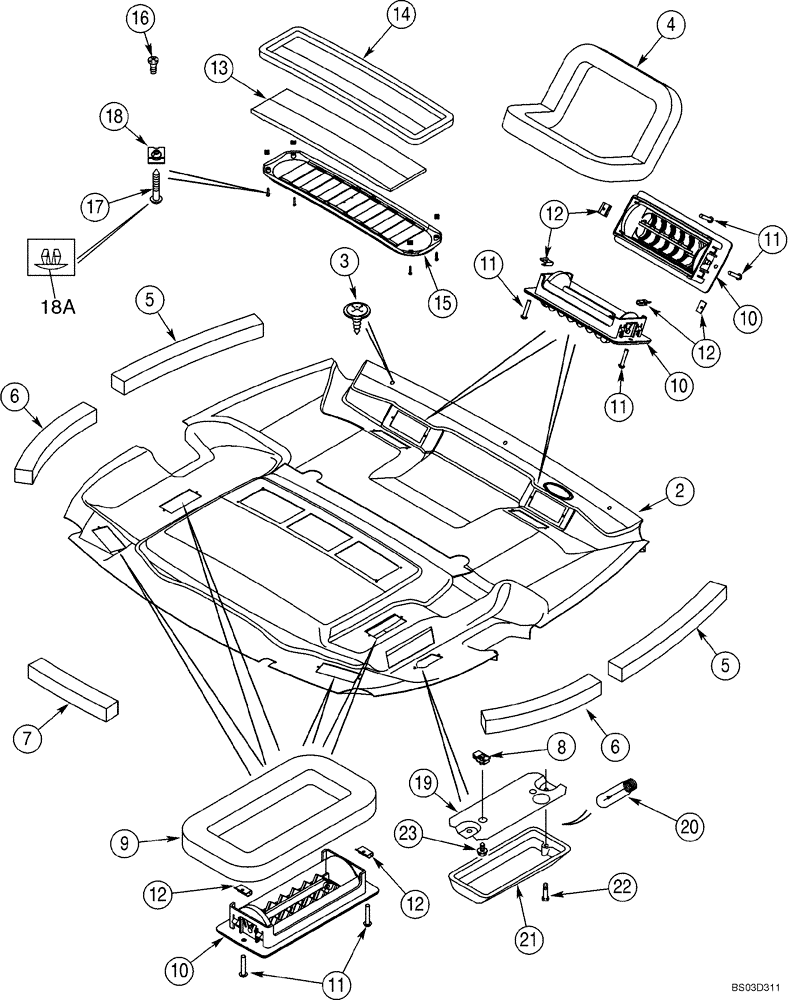

Запчасти Case 580M (09-61) - CAB HEADLINER - FILTER, LOUVERS, DOME LAMP (09) - CHASSIS/ATTACHMENTS

87653246

PLATE

HEADLINER ASSY, Standard Interior; Incl. Ref 1, 4 - 18A

1шт.

360272A6

HEADER

HEADLINER ASSY, Deluxe Interior; Incl. Ref 2, 4 - 18A

1шт.

1

87653245

LINER

Shell; Standard Interior; Not Illustrated

1шт.

2

381696A5

ROOF LINING

Shell With Foam and Fabric Covering; Deluxe Interior

1шт.

3

396516A1

SCREW,POINTED

3шт.

4

368813A2

SEAL,168mm L

Defrost

2шт.

5

379160A1

FOAM INSULATION,50mm W x 494mm L x 45mm Thk

Foam; Adhesive Back; Front

2шт.

6

379161A1

SEAL,379mm L

379 mm; Foam; Adhesive Back; Rear

2шт.

7

379209A1

SEAL,303mm L

303 mm; Foam; Adhesive Back, Center, Rear

1шт.

8

131-861

SPRING NUT,Tinn, U, #10-24

Dome Lamp

2шт.

9

377194A1

SEAL

Heat and Air

4шт.

10

363883A1

LOUVER

8шт.

11

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

16шт.

12

125749A1

SPRING NUT

J-Type, No. 6

16шт.

13

377594A5

FILTER

Air Recirculation

1шт.

14

381972A1

SEAL,592.5mm L

1шт.

15

369450A1

GRILLE

Air Recirculation; Incl. Ref 16

1шт.

16

260-1436

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

2шт.

17

414600A1

SCREW,Pan HD, M8 x 1"

4шт.

18

177269A1

SPRING NUT,M4.2

4шт.

18a

409723A1

PLUG

Plastic; Fits 5,5 mm Hole

4шт.

380719A2

INTERIOR LIGHT

(If Pin A = 12V - Order 47602061, if Pin A = Grd - Order 47774628) Dome Lamp; Incl. Ref 19 - 21

1шт.

47602061

COURTESY LIGHT

1шт.

47774628

COURTESY LIGHT

1шт.

19

NSS

NOT SOLD SEPARAT

Base

1шт.

19

48059312

GASKET

Courtesy Light

1шт.

20

N14466

BULB

1шт.

21

NSS

NOT SOLD SEPARAT

Lens; With Switch

1шт.

22

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

Base to Lens

2шт.

23

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

Lamp To Headliner

2шт.
