(09-53) - CAB - GLASS, MIRROR AND HOLD OPEN

Запчасти Case 580M (09-53) - CAB - GLASS, MIRROR AND HOLD OPEN (09) - CHASSIS/ATTACHMENTS

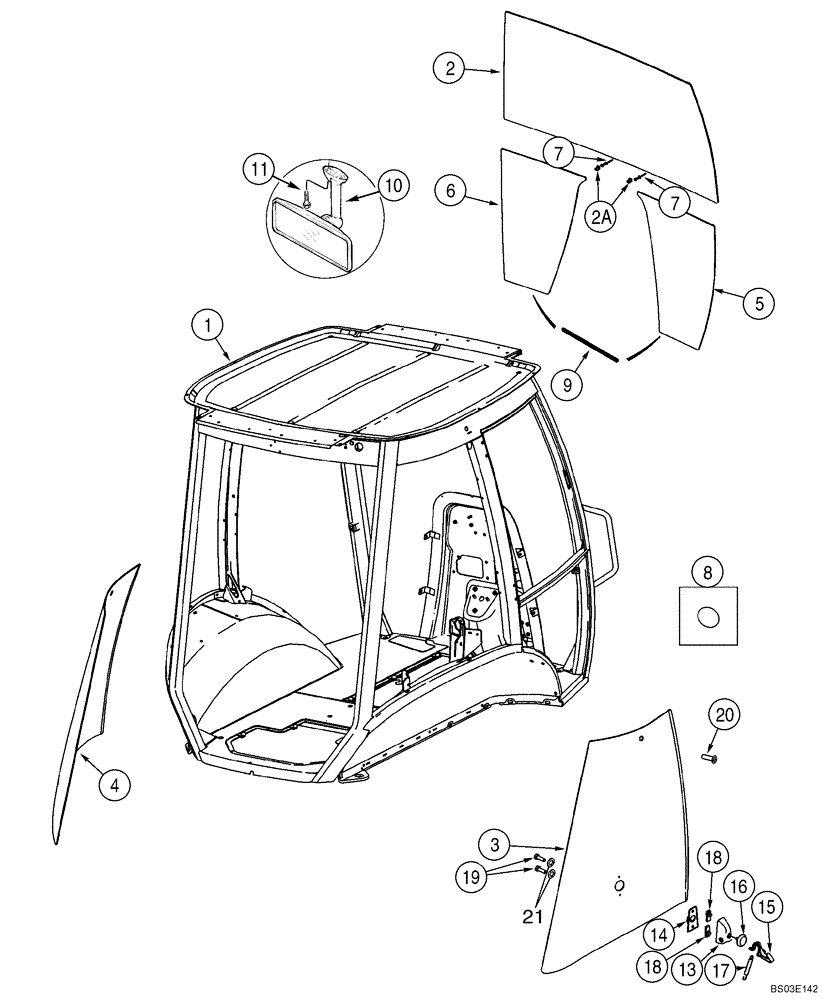

Схема запчастей Case 580M - (09-53) - CAB - GLASS, MIRROR AND HOLD OPEN (09) - CHASSIS/ATTACHMENTS
3
19
11
1
7
6
7
5
2a
2
13
4
18
15
9
20
14
10
21
18
16
8
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87636560

CAB

Single Door; Includes Frame, Left-Hand Door, All Glass, Front and Rear Wipers and Exterior Lamps; Order From Machinery Price List

1шт.

1

87636562

CAB

Two Door; Includes Frame, Left-Hand Door, All Glass, Front and Rear Wipers and Exterior Lamps; Order From Machinery Price List

1шт.

2

448607A1

GLASS

1шт.

2a

279482A1

CLAMP

Windshield

2шт.

3

338425A1

CAB GLASS ASSY,RH, Rear Qtr

Right Rear Quarter Panel

1шт.

4

338424A1

CAB GLASS ASSY,LH, Rear Qtr

Left Rear Quarter Panel

1шт.

5

448609A1

GLASS

Lower Right-Hand

1шт.

6

448608A1

CAB GLASS ASSY

Lower Left-Hand

1шт.

7

151-516

RIVET,Pop, 1/8" x .775"

2шт.

8

391827A1

SPACER,11.1mm D

36шт.

9

395793A1

PROTECTION STRIP

2шт.

10

87406924

REAR VIEW MIRROR

Interior

1шт.

11

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

2шт.

13

405740A1

COVER

2шт.

14

405739A1

LATCH

2шт.

15

405738A1

LEVER

Hold Open

2шт.

16

400573A1

GROMMET

2шт.

17

405741A1

COIL SPRING

Latch Back

2шт.

18

405742A1

NUT

M8

4шт.

19

400572A1

BOLT

M8; Nylon

4шт.

20

400571A2

BUMPER

2шт.

21

431801A1

WASHER,8.33mm ID x 19.05mm OD x 3mm Thk

Black Nylon

4шт.
