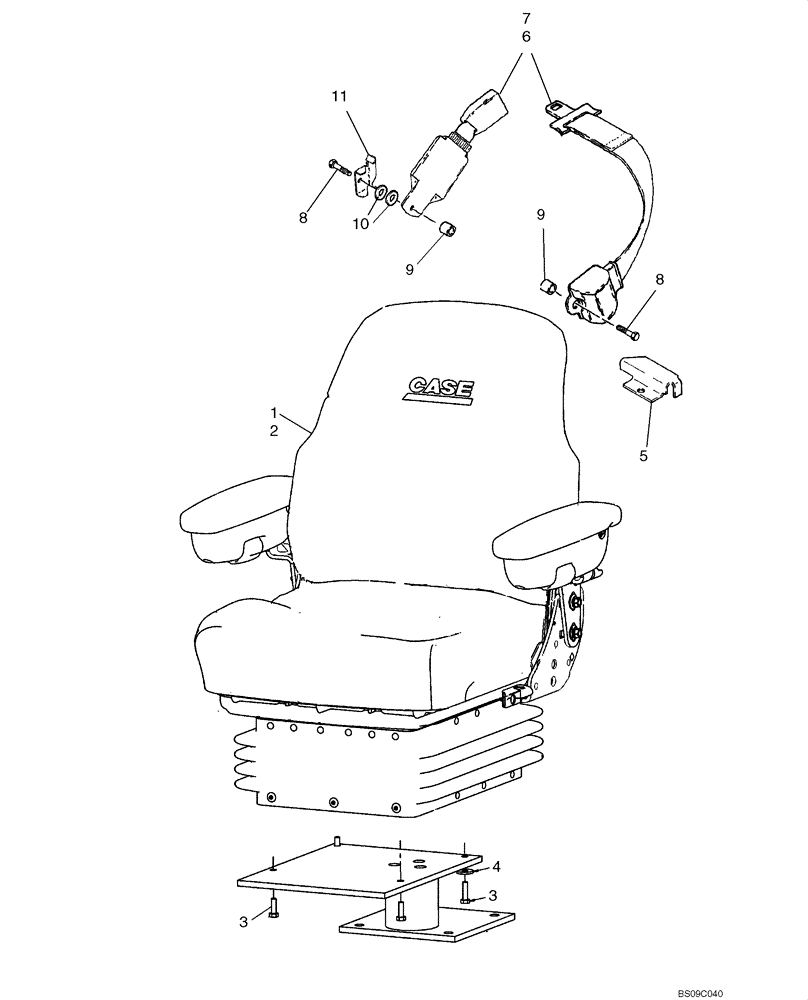

Запчасти Case 580M (09-49) - SEAT ASSY, AIR SUSPENSION - MOUNTING (09) - CHASSIS/ATTACHMENTS

1

87578905

SEAT

Air Suspension, Vinyl

1шт.

2

87578904

SEAT

Air Suspension, Cloth

1шт.

3

604-12030

BOLT,Hex, M12 x 30mm, Cl 8.8

4шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

5

186351A1

GUARD

Harness

1шт.

6

87408889

SAFETY BELT ,50.80 mm W

If used; Suspension Seat Belt Mounting

1шт.

7

87408888

SAFETY BELT ,76.20 mm W

Retractable, If used; Suspension Seat Belt Mounting

1шт.

8

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

9

87311572

SPACER,12.7mm x 19mm x 9mm

2шт.

10

895-18012

WASHER,13.5mm ID x 20mm OD x 2mm Thk

2шт.

11

87310149

BRACKET

1шт.

12

121414A1

FUSE,20A, Mini, Yellow

Air Seat

1шт.
