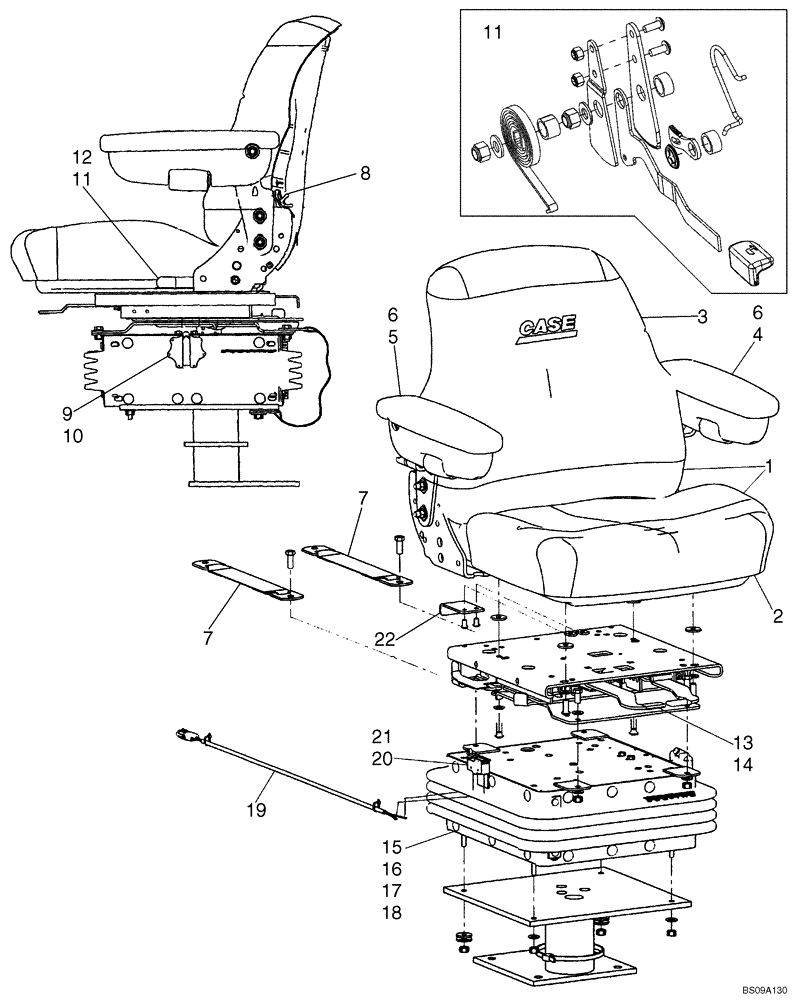

Запчасти Case 580M (09-48) - SEAT ASSY, MECHANICAL SUSPENSION (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
87399492
DRIVER SEAT
Vinyl, Mechanical Suspension, Sears SA26269, This Seat is Located 19 mm (3/4 in) Farther Forward From Center of Pedestal; Incl. Ref 1 - 21; Also Includes 87555125 Pedestal Assy; Replaces 87454295 Seat Assy, Which Included 87349995 Pedestal
1шт.
87399491
DRIVER SEAT
Cloth, Mechanical Suspension, Sears SA26268, This Seat is Located 19 mm (3/4 in) Farther Forward From Center of Pedestal; Incl. Ref 1 - 21; Also Includes 87555125 Pedestal Assy; Replaces 87454294 Seat Assy, Which Included 87349995 Pedestal
1шт.
7
87308128
SEAT ACCESSORY
Kit, Tether Belt; Includes (2) Tether Belts, (2) Bolts, (4) Washers, (2) Lock Nuts
1шт.
8
87037462
SEAT BACK ADJUST DEV
Lumbar Knob Kit; Includes Knob, 1/8 x 5/8 Roll Pin
1шт.
87308130
SEAT BACK ADJUST DEV
Kit, Lumbar; Includes (2) Screws, (2) Rivets, (1) Back Support, (1) Lumbar Shaft Yoke
1шт.
9
123969A1
SEAT ACCESSORY
Kit, Height/Weight Adjustment; Incl (1) Knob, (1) Shaft, (1) 5/32 x 1 in Roll Pin
1шт.
130674A1
SET
Kit, Weight Adjustment; Includes (1) Thrust Washer, (2) Shaft and Gear
1шт.
11
86994165
SEAT ACCESSORY
Recliner Kit; Includes (2) Brackets, (3) Spacers, (2) Springs, Knob, Latch, Lever, (2) Bolts, (2) Washers, (5) Nuts
1шт.
1977725C1
SLIDER
Kit, Bearing, Slider Block; Includes (4) Tube Bearings, (1) Ride Indicator, (1) A45512 Slider Block, (1) A45515 Slider Block, (1) A45516 Slider Block, (1) NSS Slider Block
1шт.
14
87308132
BEARING ASSY
Swivel Bearing; Includes (1) Bolt, (8) Ball Bearings, (1) Clip, (1) Nut, (1) Cotter Pin, (1) Plastic Washer, (1) Ball Retainer
1шт.
18
87308147
SEAT ACCESSORY
Kit, Boot, Suspension, Boxed; Includes (1) Boot, (26) Buttons
1шт.
87308148
SEAT ACCESSORY
Kit, Shock Absorber, Boxed; Includes (1) Shock Absorber, (2) Bushings
1шт.
21
87308151
SEAT ACCESSORY
Kit, Switch and Actuator Lever; Includes Switch, Actuator, (4) Screws, (2) Lock Washers, (2) Nuts
1шт.
