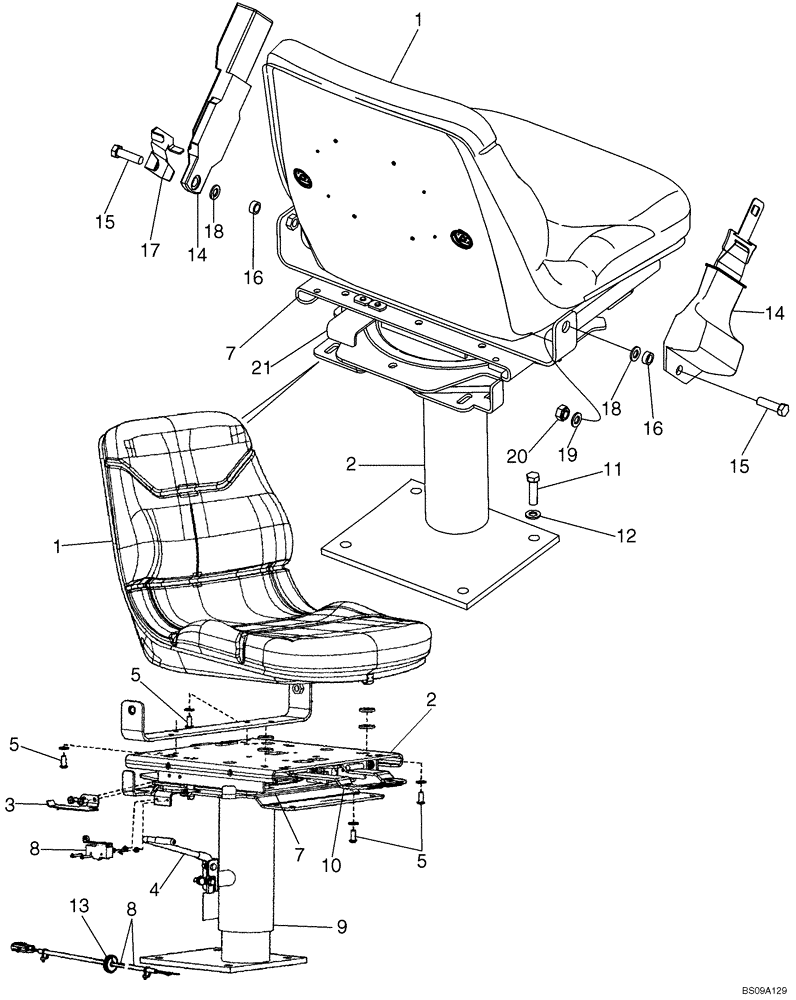

Запчасти Case 580M (09-46) - SEAT ASSY - MOUNTING (STANDARD) (09) - CHASSIS/ATTACHMENTS

87454292

SEAT ASSY.

Standard, Vinyl, Without Armrest, Sears Brand; Includes Seat, Swivel and Pedestal, and Swivel Bearing Kit, Ref 1 - 10

1шт.

1

87338681

SEAT BACK

Seat Only

1шт.

2

87346606

SEAT ACCESSORY

Swivel and Pedestal; Component Parts Not Serviced Separately

1шт.

3

87346607

SEAT ACCESSORY

Lever, Switch Actuator

1шт.

4

87346611

SEAT ACCESSORY

Handle, Height Adjustment

1шт.

5

87346612

SEAT ACCESSORY

Button Head Screw, 5/16 x 3/4

4шт.

6

87346615

SEAT ACCESSORY

Spring Not Illustrated

1шт.

7

87308132

BEARING ASSY

Swivel Bearing; Includes (1) Bolt, (8) Bearings, (1) Clip, (1) Nut, (1) Cotter Pin, (1) Plastic Washer, (1) Ball Retainer; Component Parts Not Serviced Separately

1шт.

8

87346625

KIT

Kit, Switch/Harness, Adj. Height

1шт.

9

87346633

SEAT ACCESSORY

Kit, Pedestal

1шт.

10

87346634

SEAT ACCESSORY

Kit, Slide/Swivel

1шт.

11

604-12030

BOLT,Hex, M12 x 30mm, Cl 8.8

4шт.

12

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

13

248-2373

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

1шт.

14

87408888

SAFETY BELT ,76.20 mm W

Retractable, If used

1шт.

14

87408889

SAFETY BELT ,50.80 mm W

Retractable, If used

1шт.

15

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

2шт.

16

87311572

SPACER,12.7mm x 19mm x 9mm

2шт.

17

87310149

BRACKET

Left-Hand; Seat Belt Mounting/Standard Seat

1шт.

18

495-81169

WASHER,17/32" x 2 1/2" x .120"

2шт.

19

496-81010

WASHER

4шт.

20

232-4617

LOCK NUT,7/16"-20, GC

2шт.

21

84174986

BRACKET

Front Stop

1шт.
