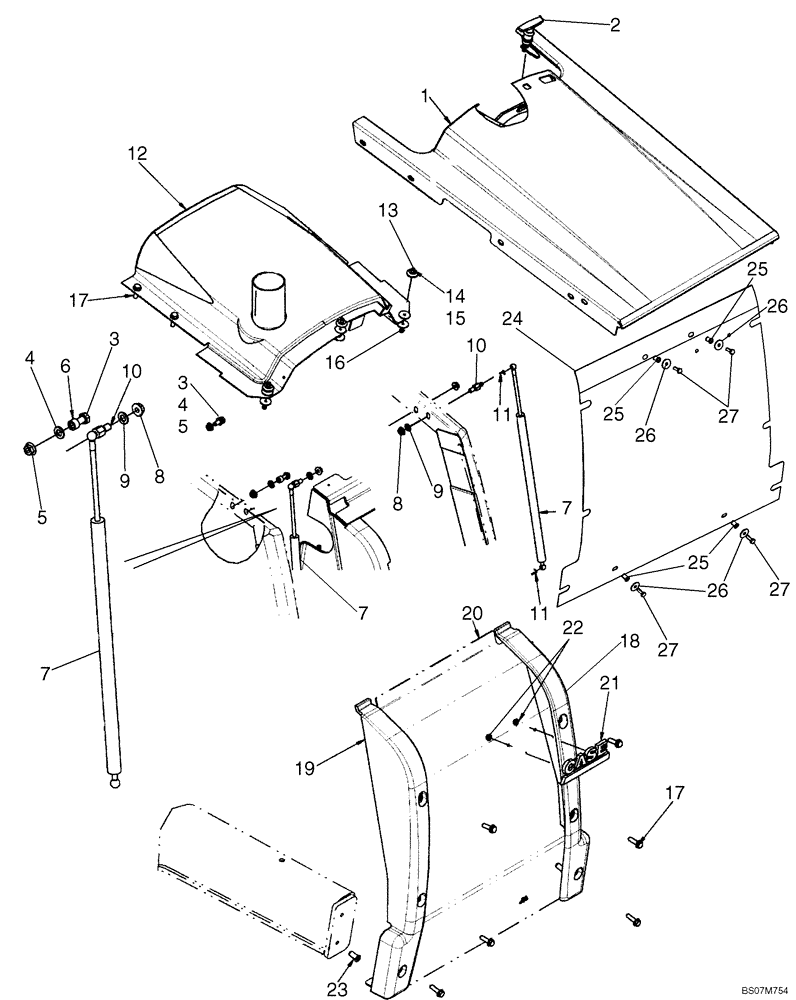

Запчасти Case 580M (09-41) - HOOD - GRILLE (09) - CHASSIS/ATTACHMENTS

1

87594903

ENGINE HOOD

Engine; Tilt

1шт.

2

175599A1

LATCH

1шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

5

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

6

396605A1

SPACER,10.31mm ID x 15.88mm OD x 10mm L

1шт.

7

114980A1

GAS STRUT

Spring; Counterbalance

2шт.

8

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

10

139363A1

BALL JOINT,M10 x 1.5mm x 42mm L

Stud

2шт.

11

F44883

CLIP,DIN 71805 - S10

4шт.

12

87545557

ENGINE HOOD

Fixed

1шт.

13

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

3шт.

14

109879A1

SPACER,5.5mm ID x 30mm OD

3шт.

15

185325A1

SPACER,5.5mm ID x 30mm OD x 2mm L

8шт.

16

231-14109

LOCK NUT,#10-24, GB

3шт.

17

392828A2

BOLT,M10-1.5 x 40mm L W/CAPTURED WASHER

With Washer, M10 x 40

10шт.

18

87719497

BUMPER

LH Front

1шт.

19

87719495

BUMPER

RH Front

1шт.

20

87585167

RADIATOR GRILLE

Front

1шт.

21

186989A1

EMBLEM

CASE Medallion

1шт.

22

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

23

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

2шт.

24

87726055

SCREEN,1.90mm Perforation

Screen, Chaff

1шт.

25

255447A1

THREADED INSERT

4шт.

26

257382A1

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

6.6 x 25 x 1.6 mm

4шт.

27

257381A1

BOLT

1/4 NF x 3/4

4шт.
