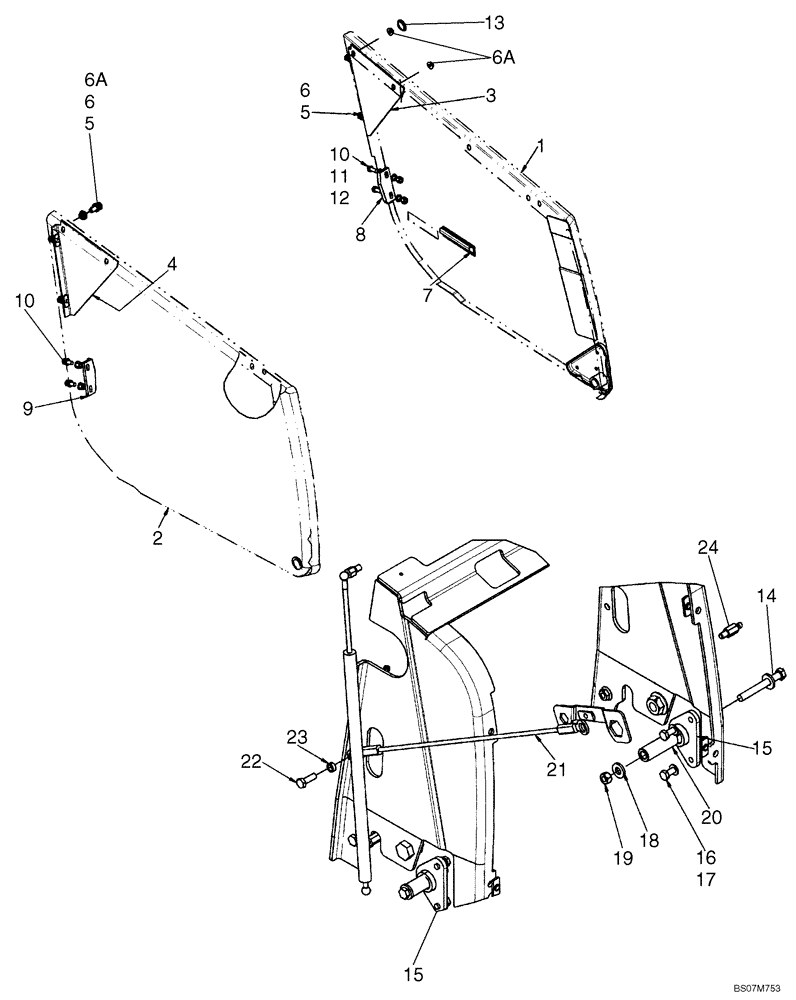

Запчасти Case 580M (09-40) - HOOD - PANELS, SIDE (09) - CHASSIS/ATTACHMENTS

1

87444148

PANEL, SIDE

Left-Hand Side

1шт.

2

87444147

PANEL, SIDE

Right-Hand Side

1шт.

3

362609A1

SUPPORT

LH

1шт.

4

362607A1

SUPPORT

RH

1шт.

5

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

8шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

6a

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

7

183168A1

HANDLE

Left-Hand

1шт.

8

D143715

SUPPORT

Guide, Left-Hand

1шт.

9

D143714

SUPPORT

Guide, Right-Hand

1шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

13

D140267

PLUG,30.16mm OD

2шт.

14

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

15

87606502

PIVOT

2шт.

16

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

18

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

19

829-1412

NUT,M12, Cl 10.9

2шт.

20

87412060

TUBE,13.5 mm ID x 25.36 mm OD x 76 mm L

2шт.

21

144908A2

CABLE,638mm L

1шт.

22

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

23

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

1шт.

24

87561131

BALL JOINT,M10 x 1.5mm x 48mm L

2шт.
