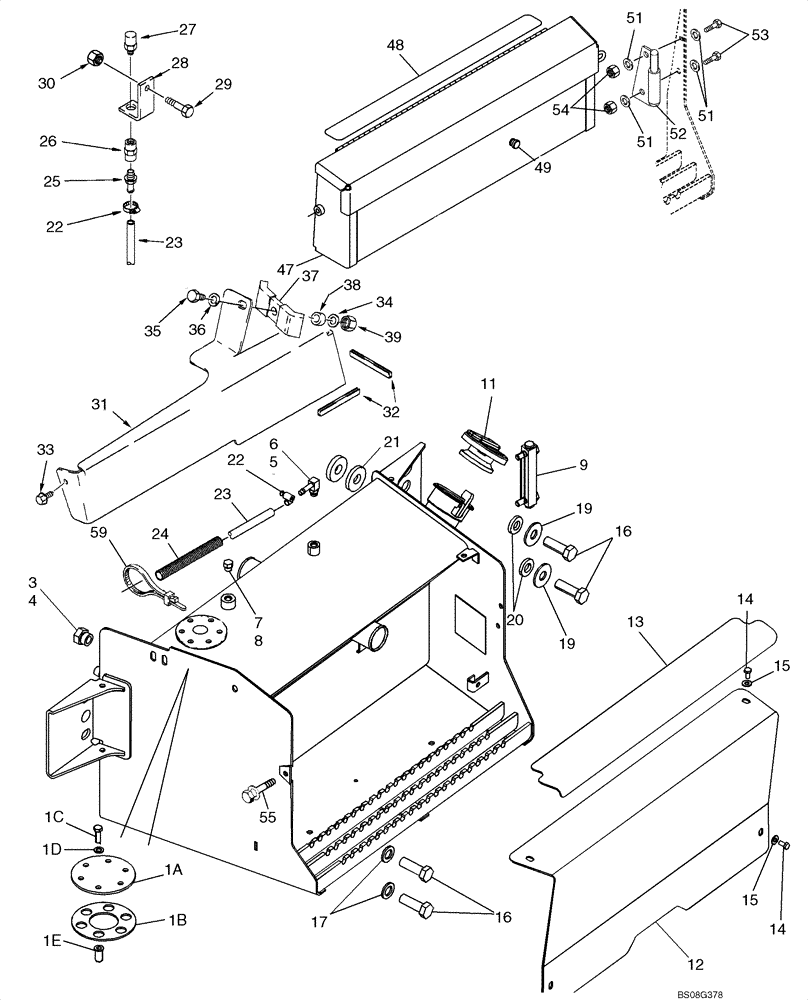

Запчасти Case 580M (09-38) - TANK, OIL - BOX, BATTERY AND TOOL (09) - CHASSIS/ATTACHMENTS

87651830

RESERVOIR, HYDRAULIC

ASSEMBLY; Incl. Ref 1 - 11

1шт.

1

87651790

RESERVOIR, HYDRAULIC

Right-Hand Side of Chassis; Incl. 1A - 1E

1шт.

1a

87666894

COVER

Cover

1шт.

1b

87666896

GASKET,110mm OD, 50mm ID, 18mm ID

1шт.

1c

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

6шт.

1d

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

1e

379184A1

RIVET,Flng, 10.97mm OD x 27.5mm L

6шт.

2

321-229

DECAL

Not Illustrated

1шт.

3

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl. 4

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

217-347

FITTING,90 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

Incl. 6

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

218-5155

PLUG,9/16" - 18 ORB

Incl. 8

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

226456A1

LEVEL GAUGE

Aluminum; Incl. (2) Hollow Head Bolts and (4) 238-6114 O-Rings, Used with Ref 10

1шт.

9a

87673270

ADHESIVE STRIP

Adhesive Backed; Not Illustrated

1шт.

10

345-49

SEALANT

242; 1 ml; Not Illustrated

1шт.

11

138595A1

FILLER CAP,Male, Lockable

CAP

1шт.

12

87348192

COVER

Battery

1шт.

13

87719444

ANTI-SKID STRIP

1шт.

14

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

15

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

16

443375A1

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

M20 x 60; 10.9;, Serial Range: Thread-Head

4шт.

17

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

2шт.

19

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

2шт.

20

185926A1

SPACER,21mm x 40mm x 6.6mm Th

2шт.

21

87360280

SPACER,22mm ID x 57mm OD x 8.25 Th

1шт.

22

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

23

87363421

HOSE, BULK,9.53mm ID x 912mm L

HOSE, METERS 912 mm (35-29/32 in); Vent

1шт.

24

87452021

PROTECTIVE SLEEVE,19mm ID x 650mm L

650 mm (25-19/32 in)

1шт.

25

217-380

FITTING,3/8" Hose Barb x 3/8" Male NPTF

3/8 stem x PT; Use With 345-147 Sealant

1шт.

26

217-1102

HYD CONNECTOR,3/8" - 18 NPT x 3/8" - 18 NPT

1шт.

27

87674850

BREATHER

Use With 345-147 Sealant

1шт.

28

122603A1

SUPPORT

1шт.

29

711-10030

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

1шт.

30

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

31

399959A2

COVER

1шт.

32

191047A1

MOLDING

305 mm (12 in) lg; Apply 65 mm (2-9/16 in) Of Trim To Front Lower Edge and 240 mm (9-1/2 in) Of Trim To Outisde Lower Edge of Cover

1шт.

33

307577A1

BOLT

With Washer, M8 x 20

1шт.

34

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

35

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

36

892-11010

LOCK WASHER,M10

1шт.

37

D138055

CLAMP

1шт.

38

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

39

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

47

380807A4

BOX, TOOL

1шт.

48

87694065

ANTI-SKID STRIP

1шт.

49

L60224

BUMPER

1/2 in Hole

1шт.

51

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

52

382202A2

HINGE

1шт.

53

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

54

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

55

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

Includes Washer

1шт.

59

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

2шт.
