(09-34) - BUCKET, UNIVERSAL BACKHOE (914 MM (36 INCH) WIDE)

Запчасти Case 580M (09-34) - BUCKET, UNIVERSAL BACKHOE (914 MM (36 INCH) WIDE) (09) - CHASSIS/ATTACHMENTS

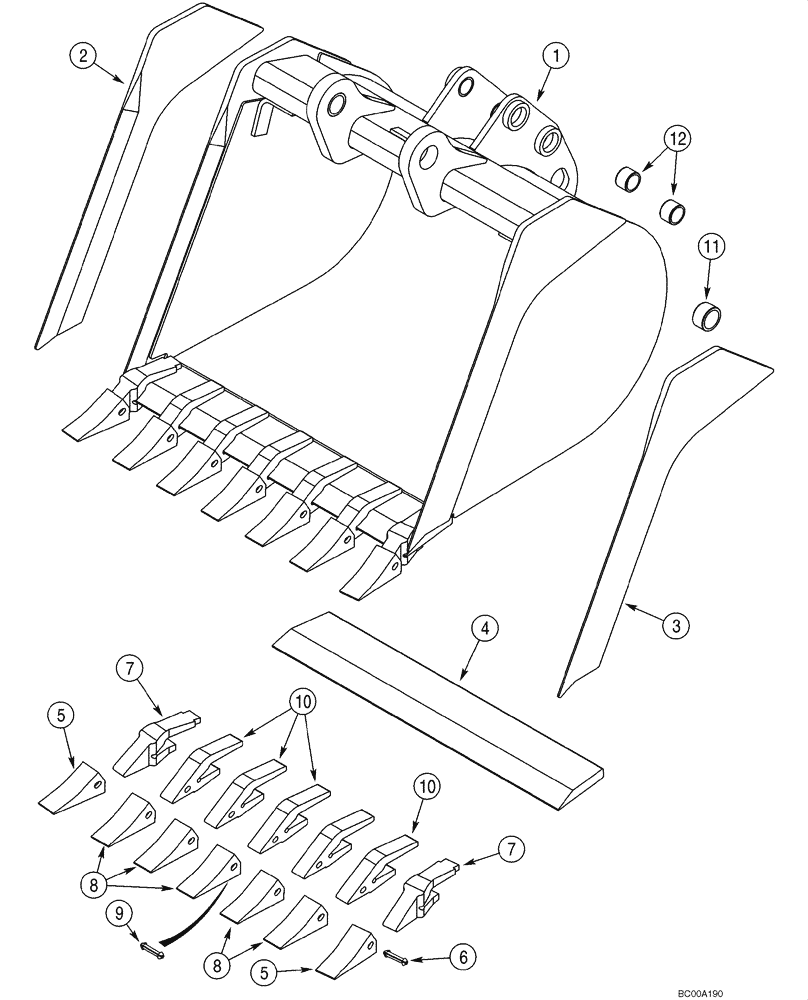

Схема запчастей Case 580M - (09-34) - BUCKET, UNIVERSAL BACKHOE (914 MM (36 INCH) WIDE) (09) - CHASSIS/ATTACHMENTS
5
2
5
6
10
7
11
8
12
10
4
3
8
7
1
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87724910

BUCKET

914 mm (36 in); With 7 Teeth; Order Through Parts Marketing; Incl. Ref 2 - 12; Replaces 376386A1

1шт.

2

365941A1

CUTTING EDGE

Edge, Left-Hand

1шт.

3

365942A1

CUTTING EDGE

Edge, Right-Hand

1шт.

370747A1

BUCKET TOOTH

CUTTING EDGE ASSEMBLY; With Teeth; Incl Ref 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

Edge

1шт.

D139851

BUCKET TOOTH

Outer; Incl. Ref 5 - 7

2шт.

5

D51750

BUCKET TOOTH POINT

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

1шт.

7

D138157

SHANK

1шт.

D139849

BUCKET TOOTH

Center; Incl. Ref 8 - 10; Order Ref 8 - 10

5шт.

8

D51750

BUCKET TOOTH POINT

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

1шт.

10

D48212

SHANK

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

4шт.
