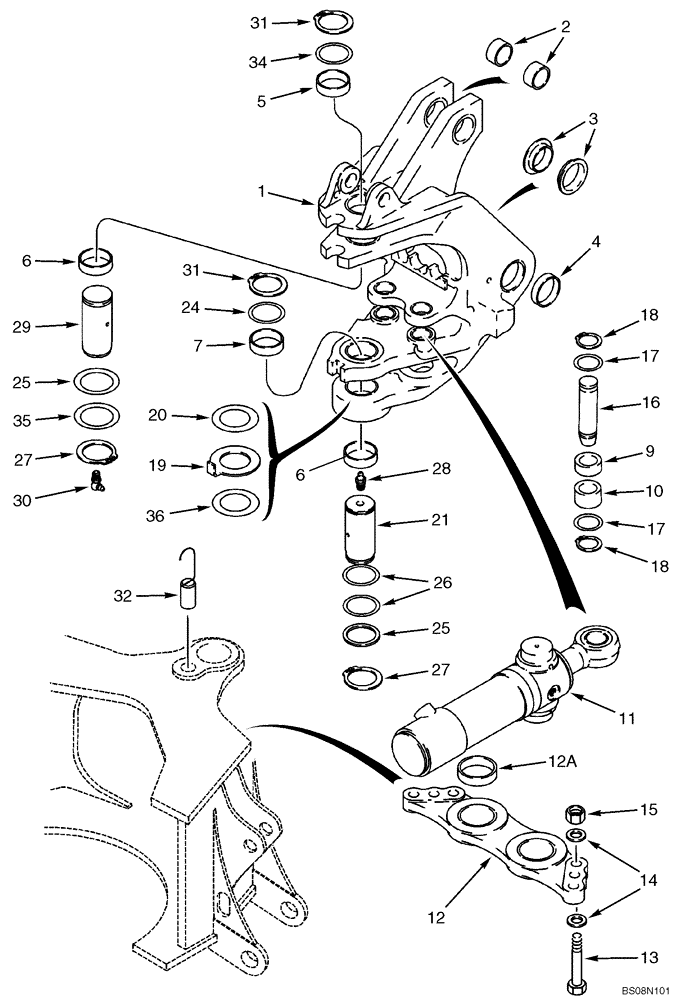

Артикул
Название
Примечание
Количество
87737557
TOWER
Swing; Incl. 1 - 10
1шт.
1
326806A1
TOWER
Swing
1шт.
4
329998A1
BUSHING,70.19mm ID x 90mm OD x 21.5mm L
2шт.
5
D135557
BUSHING,70.5mm ID x 86mm OD x 30mm L
1шт.
6
D135559
BUSHING,70.19mm ID x 86mm OD x 28mm L
70.22 ID x 86 OD x 28 mm wide
2шт.
7
D138042
BUSHING
70.22 ID x 86 OD x 34 mm wide
1шт.
11
188027A2
CYLINDER ASSY.,Double Acting, 50.8mm Rod, 292mm Stroke
95 ID x 292 mm strk; Swing; See Figure 08-62
2шт.
188027A2R
REMAN-HYD CYLINDER
580M (SERIES 2) (TIER 2) (NA) (2/08-)
2шт.
188027A2C
CORE-HYD CYLINDER
Return Number
1шт.
12
198976A1
PLATE
Incl Ref 12A
1шт.
12a
114318A1
BUSHING,80.19mm ID x 90mm OD x 29.35mm L
80 x 90 x 29.3 mm
2шт.
13
827-20075
BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9, Full Thd
6шт.
15
829-1420
NUT,M20, Cl 10
6шт.
16
386092A2
PIN,50.77mm OD x 194.7mm L
2шт.
18
103-16200
SNAP RING,#200, Ext
4шт.
19
243084A1
LOCK WASHER,72mm ID x 146mm OD x 5mm Thk
5 mm thk
1шт.
20
134167A1
SHIM,72mm ID x 140mm OD x 2.05mm Thk
2.05 mm (.08 in) thk
1шт.
21
D151065
PIN,70mm OD x 152mm L
1шт.
24
D136392
SHIM,72mm ID x 89mm OD x 3.05mm Thk
(M72 ID x 89 OD)
1шт.
25
D136700
SHIM,67mm ID x 83mm OD x 1.57mm Thk
67 x 83 x 2.0 mm
2шт.
26
D136391
SHIM,72mm ID x 89mm OD x 1.57mm Thk
(M72 ID x 89 OD)
1шт.
27
800-40065
SNAP RING,M65, Ext
2шт.
28
219-1
LUBE NIPPLE,1/8" - 27 NPTF
1шт.
29
292385A1
PIN,70mm OD x 128.5mm L
1шт.
30
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
1шт.
31
800-40070
SNAP RING,M70 Ext
2шт.
32
384815A1
PIN
Swing Stop
1шт.
34
293636A1
WASHER,71mm ID x 83mm OD x 3.05mm Thk
Upper
1шт.
35
D144423
WASHER,66.7mm ID x 86mm OD x 3.4mm Thk
2-5/8 x 3-3/8 x 1/8; Used As A Shim
1шт.
36
87477364
SHIM
1шт.
Выбрано товаров: 36
