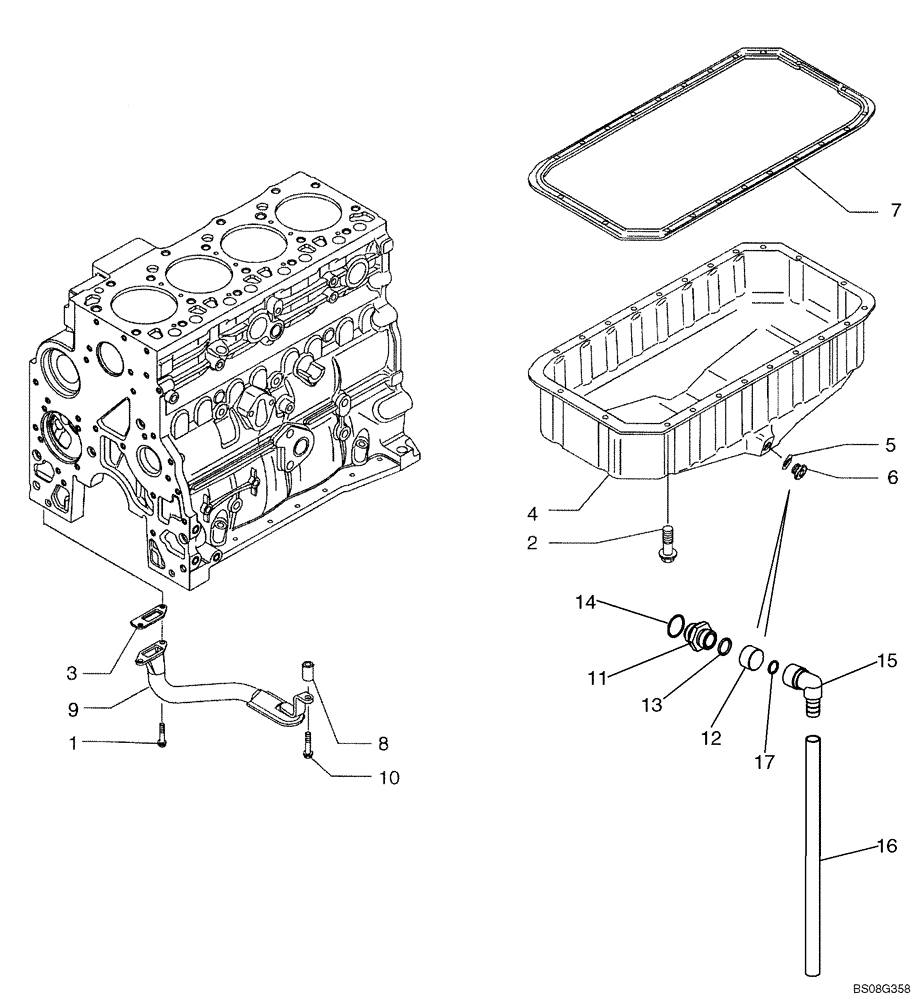

Запчасти Case 580M (02-11) - OIL PUMP, PAN (02) - ENGINE

1

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

22шт.

2

4895489

FLANGE BOLT,Hex, M8 x 1.25 x 110mm

2шт.

3

4898301

GASKET,0.42mm Thk

1шт.

4

2852011

ENGINE OIL PAN

1шт.

5

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

1шт.

6

2856086

PLUG

22 x 1.5; Does Not Include Seal, Purchase Seal Separately

1шт.

7

2852012

OIL PAN GASKET SET

1шт.

8

2852016

SPACER,11mm ID x 22mm OD x 39mm L

1шт.

9

2852013

STRAINER ELEMENT

Tube; Oil Suction, Includes Screen Which Is Not Serviced Separately

1шт.

10

4895538

FLANGE BOLT,Hex, M10 x 1.5 x 120mm

1шт.

85826260

DRAIN VALVE

Assembly, Incl. 11 - 17; Used On 4WD Units To Prevent Oil From Draining Onto the Front Driveshaft Guard

1шт.

87490402

DRAIN VALVE

Incl. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

Plug, Special Oil Drain

1шт.

12

87497900

DRAIN PLUG,Hex, M22.5 x 1.5

1шт.

13

87698749

O-RING,0.612" ID x 0.818" OD x 0.103"

1шт.

14

14453881

O-RING,23.52mm ID x 1.78" Width

1шт.

87490403

DRAIN VALVE

Female Engine Oil Drain; Incl. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

Connector; Hydraulic, Special Oil Drain

1шт.

16

NSS

NOT SOLD SEPARAT

Hose, Special Drain Plug

1шт.

17

14453181

O-RING,0.489" ID x 0.07" Width

1шт.
