(09-19) - CONTROLS - BACKHOE, WITH HAND SWING (MODELS WITH OR WITHOUT EXTENDABLE DIPPER)

Запчасти Case 580M (09-19) - CONTROLS - BACKHOE, WITH HAND SWING (MODELS WITH OR WITHOUT EXTENDABLE DIPPER) (09) - CHASSIS/ATTACHMENTS

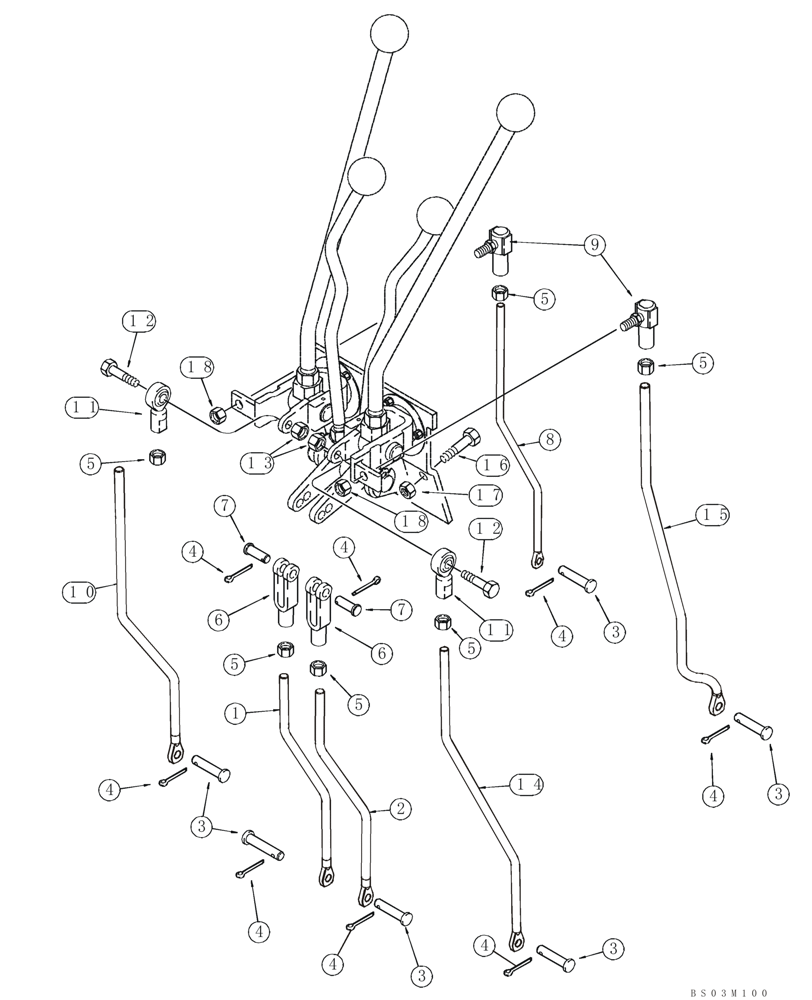

Схема запчастей Case 580M - (09-19) - CONTROLS - BACKHOE, WITH HAND SWING (MODELS WITH OR WITHOUT EXTENDABLE DIPPER) (09) - CHASSIS/ATTACHMENTS
4
6
5
4
12
8
4
5
11
18
7
5
7
9
bs03m100
5
3
11
5
15
4
17
4
6
1
12
3
10
4
2
3
5
18
14
4
3
13
16
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

LOWER CONTROL LEVERS

1шт.

1

87452406

THREADED ROD,9.53mm D x 277mm L

Right-Hand; Stabilizer; 286.6 mm (11-9/32 in) Long

1шт.

2

87452404

THREADED ROD,9.53mm D x 277mm L

Left-Hand; Stabilizer; 286.6 mm (11-9/32 in) Long

1шт.

3

D149287

PIN,7.9mm OD x 26.72mm L

6шт.

4

432-612

COTTER PIN,3/32" x 3/4"

8шт.

5

425-116

NUT,3/8" - 24, Gr 5

6шт.

6

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

2шт.

7

D149288

PIN,8.33mm OD x 30.66mm L

Special

2шт.

8

87422264

THREADED ROD,9.53mm D x 384mm L

Bucket

1шт.

9

D149295

BALL JOINT,3/8"

2шт.

10

87422262

THREADED ROD,9.53mm D x 367mm L

Dipper

1шт.

11

87382812

BALL JOINT HEAD,3/8" - 24

3/8 NF

2шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

87422256

THREADED ROD,9.53mm D x 378mm L

Boom

1шт.

15

87422253

THREADED ROD,9.53mm D x 385mm L

Swing

1шт.

16

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

18

231-2446

NUT,3/8"-24, GB

2шт.
