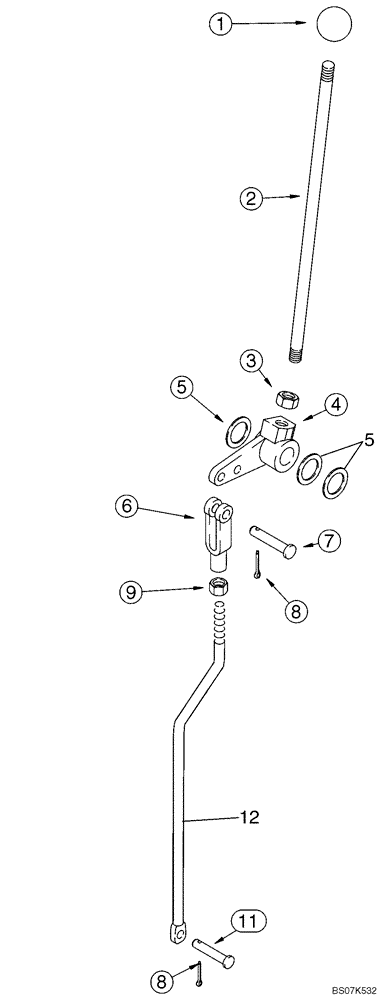

Запчасти Case 580M (09-17) - CONTROLS - BACKHOE, WITH FOOT SWING (MODELS WITH EXTENDABLE DIPPER) (09) - CHASSIS/ATTACHMENTS

1

L54563

KNOB

Extendahoe

1шт.

2

136263A1

ROD,12.7mm OD x 407mm L

Extendahoe

1шт.

3

425-118

NUT,1/2"-20, G5

1шт.

4

182006A1

LEVER

Bellcrank

1шт.

5

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

1шт.

6

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

1шт.

7

427-6088

CLEVIS PIN,3/8" x 3/4"

1шт.

8

432-612

COTTER PIN,3/32" x 3/4"

2шт.

9

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

11

D149287

PIN,7.9mm OD x 26.72mm L

1шт.

12

87446113

THREADED ROD

Extendahoe; Mounts In Inner Bellcrank Lever Hole

1шт.
