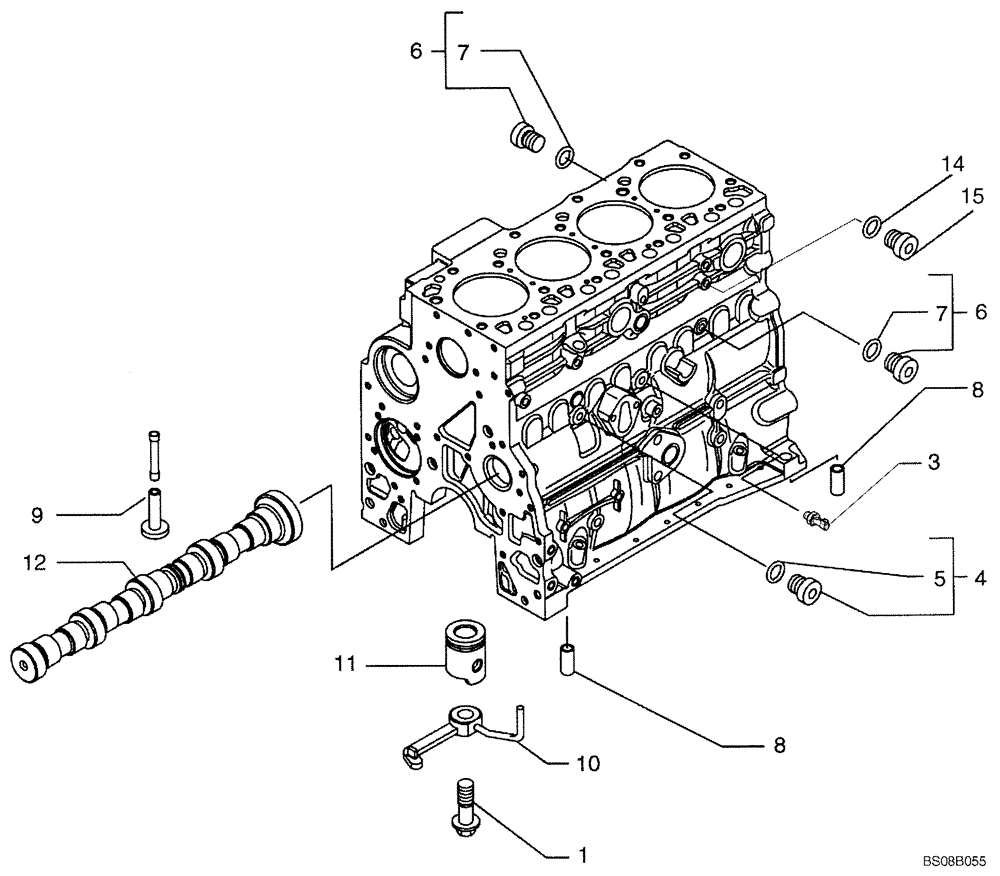

Запчасти Case 580M (02-10) - CYLINDER BLOCK - CYLINDER BLOCK ATTACHING PARTS (02) - ENGINE

1

4894218

SCREW,Special, M8 x 20

4шт.

3

2852889

PRESSURE SWITCH

1шт.

4

4899009

PLUG,M10 x1

Incl. Ref 5

1шт.

5

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

6

4895392

HEX SOCKET PLUG,M18 x 1.5

Incl. Ref 7

2шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

8

4895049

DOWEL,M16.05 x 10

2шт.

9

J931623

TAPPET

8шт.

10

2852202

NOZZLE, PISTON COOLI

Incl. Ref 1

4шт.

11

REF

INSTRUCTION

PISTON; See Figure 02-23

1шт.

12

REF

INSTRUCTION

CAMSHAFT; See Figure 02-28

1шт.

14

4895623

HEX SOCKET PLUG,M16 x 1.5

Incl. Ref 15

1шт.

15

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

84131040

SHORT ENGINE

Kit, Tier 3 Short Block; Includes All Items on Fig 02-09, Ref 1, 6 - 10 On Fig 02-10, Ref 1 - 4 On Fig 02-21, Ref 1, 4 On Fig 02-22, Ref 1 - 4 On Fig 02-23, And Ref 1 - 7 On Fig 02-28

1шт.

84131040R

1шт.

84131040C

Return Number

1шт.

84131040ER

REMAN-SHORT ENGINE

1шт.

84131040EPAC

CORE-SHORT ENGINE

Return Number

1шт.
