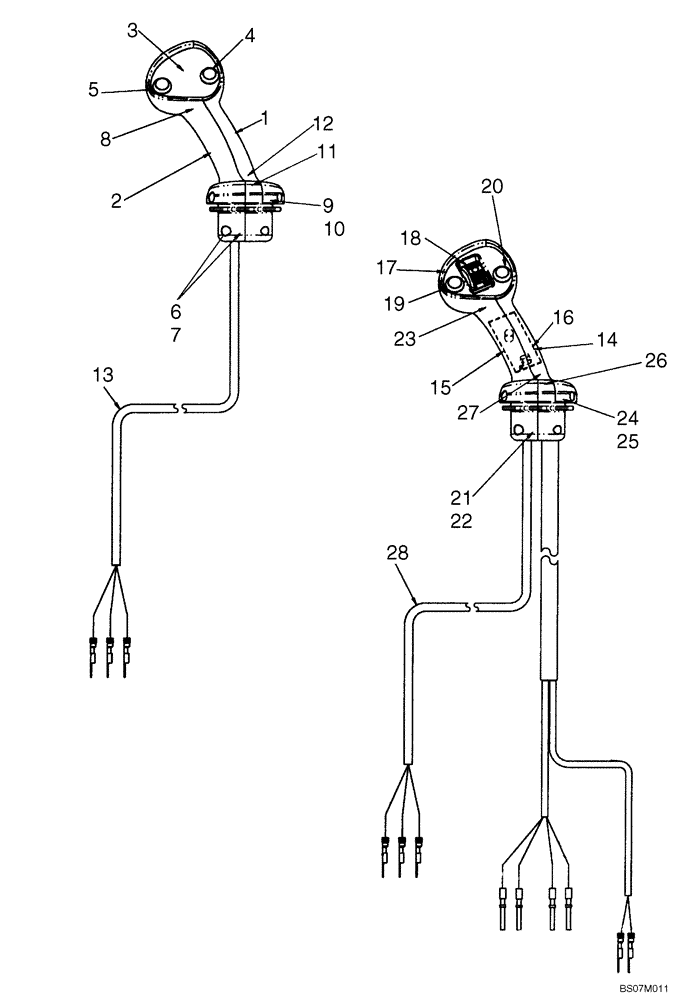

Запчасти Case 580M (09-01A) - HANDLE, LOADER CONTROL - TRANSMISSION ASSY, 2WD, 4WD (09) - CHASSIS/ATTACHMENTS

87638046

JOYSTICK

Loader Control Lever, Two Button, DeClutch and Differential Lock Switches; 2 Spool With Standard Transmission; Incl. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

Handle Grip, Loader Control, RH Half

1шт.

2

NSS

NOT SOLD SEPARAT

Handle Grip, Loader Control, LH Half

1шт.

3

NSS

NOT SOLD SEPARAT

Bezel, Switch Mounting

1шт.

4

NSS

NOT SOLD SEPARAT

Switch, Push Button, Differential Lock

1шт.

5

NSS

NOT SOLD SEPARAT

Switch, Push Button, De-Clutch

1шт.

6

825-1404

NUT,M4, Cl 8

4шт.

7

86639294

HEX SOC SCREW,M4 x 0.7 x 20mm, Cl 8.8

4шт.

8

260-16312

SELF-TAP SCREW,Pan HD, M6 x 20mm

2шт.

9

87019103

SET SCREW,M6 x 10mm

2шт.

10

87638350

NUT

NUT

2шт.

11

87689189

CABLE TIE,110mm L

CABLE STRAP

1шт.

12

87689338

SCREW,#4 - 24 x 3/8"

1шт.

13

NSS

NOT SOLD SEPARAT

Harness, Differential Lock and De-Clutch

1шт.

87638047

JOYSTICK

Loader Control Lever, Two Button, DeClutch and Differential Lock, Prop Roller With Detent; 3 Spool With Standard Transmission; Incl. 14 - 28

1шт.

14

NSS

NOT SOLD SEPARAT

Handle Grip, Loader Control, RH Half

1шт.

15

NSS

NOT SOLD SEPARAT

Handle Grip, Loader Control, LH Half

1шт.

16

NSS

NOT SOLD SEPARAT

Circuit Board With Harness; Bi-Directional PWM Driver

1шт.

17

NSS

NOT SOLD SEPARAT

Bezel, Switch Mounting

1шт.

18

NSS

NOT SOLD SEPARAT

Switch, Prop Roller With Detent

1шт.

19

NSS

NOT SOLD SEPARAT

Switch, Push Button, De-Clutch

1шт.

20

NSS

NOT SOLD SEPARAT

Switch, Push Button, Differential Lock

1шт.

21

825-1404

NUT,M4, Cl 8

4шт.

22

86639294

HEX SOC SCREW,M4 x 0.7 x 20mm, Cl 8.8

4шт.

23

260-16312

SELF-TAP SCREW,Pan HD, M6 x 20mm

2шт.

24

87019103

SET SCREW,M6 x 10mm

2шт.

25

87638350

NUT

NUT

2шт.

26

87689189

CABLE TIE,110mm L

CABLE STRAP

1шт.

27

87689338

SCREW,#4 - 24 x 3/8"

1шт.

28

NSS

NOT SOLD SEPARAT

Harness, Differential Lock and De-Clutch

1шт.
