Запчасти Case 580M (02-09) - CYLINDER BLOCK (02) - ENGINE

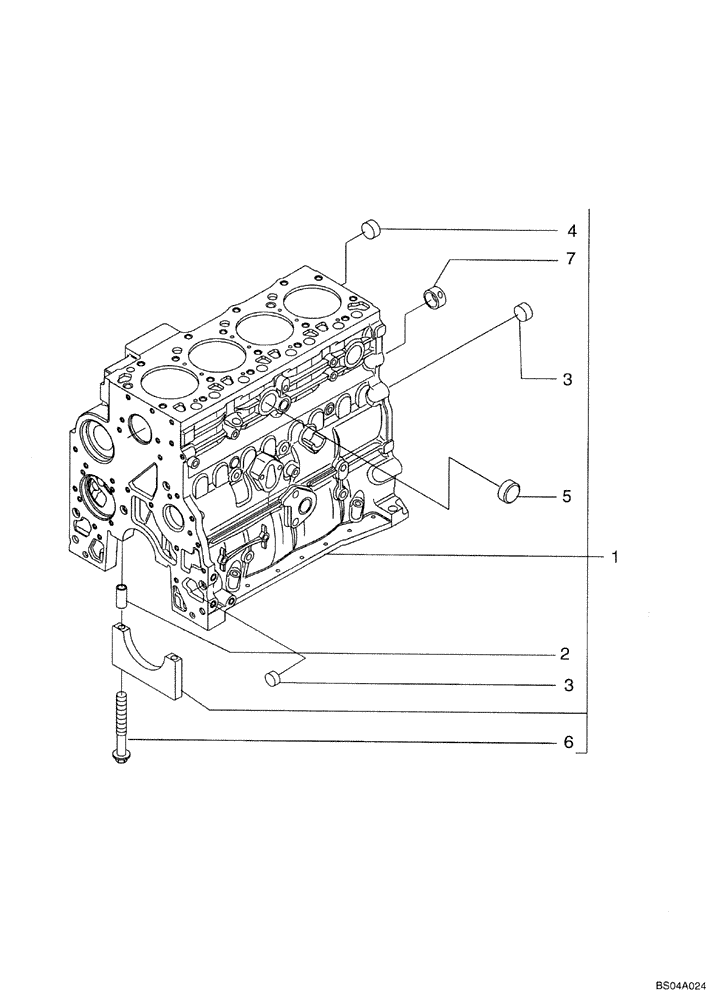

Схема запчастей Case 580M - (02-09) - CYLINDER BLOCK (02) - ENGINE
3
1
5
6
7
3
2
4

Артикул

Название

Примечание

Количество

1

2830082

CYLINDER BLOCK,4 Cylinders

- ASSY; Incl. Ref 2 - 7, Plus Main Bearing Caps

1шт.

4895919

BEARING ASSY,86.1mm D

Main

4шт.

4895921

BEARING ASSY,86.1mm D

Main; Incl. 2

1шт.

2

4899026

DOWEL,M18 x 10

10шт.

3

4895039

EXPANSION PLUG,M17.73

3шт.

4

4895038

EXPANSION PLUG,M58.06

4шт.

5

4895228

EXPANSION PLUG,35.23mm x 7.94mm

2шт.

6

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

10шт.

7

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

1шт.

84131040

SHORT ENGINE

Kit, Tier 3 Short Block; Includes All Items on Fig 02-09, Ref 1, 6 - 10 On Fig 02-10, Ref 1 - 4 On Fig 02-21, Ref 1, 4 On Fig 02-22, Ref 1 - 4 On Fig 02-23, And Ref 1 - 7 On Fig 02-28

1шт.

84131040R

1шт.

84131040C

Return Number

1шт.

84131040ER

REMAN-SHORT ENGINE

1шт.

84131040EPAC

CORE-SHORT ENGINE

Return Number

1шт.

Выбрано товаров: 14
