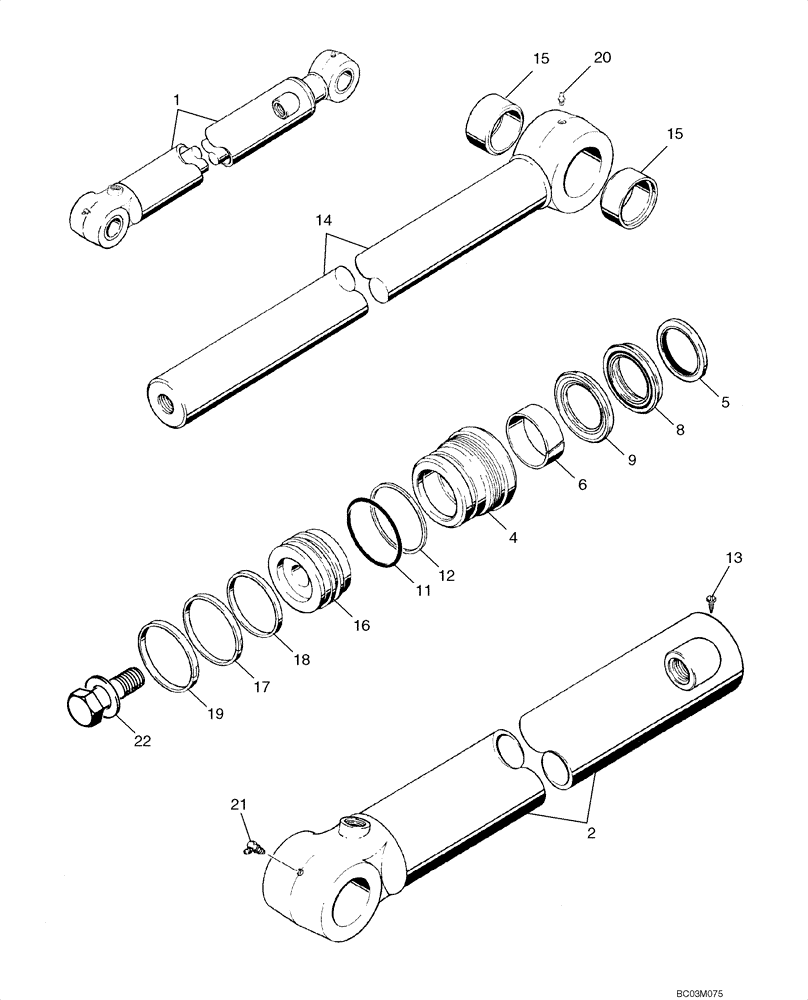

Запчасти Case 580M (08-65) - CYLINDER ASSY - BACKHOE BUCKET (08) - HYDRAULICS

1

128760A1

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 871.7mm Stroke

83 ID x 872 mm strk, Incl. Ref 2 - 22

1шт.

1

128760A1R

REMAN-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

1

128760A1C

CORE-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

2

128761A1

TUBE,82.5mm Bore Dia

TUBE

1шт.

4

128770A2

CYLINDER END CAP

GLAND

1шт.

131750A2

SEAL KIT

Seal, Incl. Ref 5 - 12, 17 - 19

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

1шт.

6

1346476C1

RING,57.15mm ID, Int

1шт.

1542877C1

SEAL KIT,57.2mm Rod

Rod and Buffer; Incl. Ref 8, 9; Not Serviced Separately; Order 131750A2 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

Rod Seal; Order 131750A2 Seal Kit

1шт.

9

NSS

NOT SOLD SEPARAT

Buffer Seal; Order 131750A2 Seal Kit

1шт.

11

238-5233

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

1шт.

12

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

Backup

1шт.

13

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

14

198033A1

PISTON ROD

57 mm (2-1/4 in) dia, Incl. Ref 15

1шт.

15

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

2шт.

16

128772A1

PISTON

1шт.

17

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

1шт.

18

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

1шт.

19

S109445

RING,82.55mm OD, Ext

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

22

86982441

SPECIAL BOLT,Hex, 12, 1 1/4 x 3"

1,25 x 3,00; Incl. Washer

1шт.
