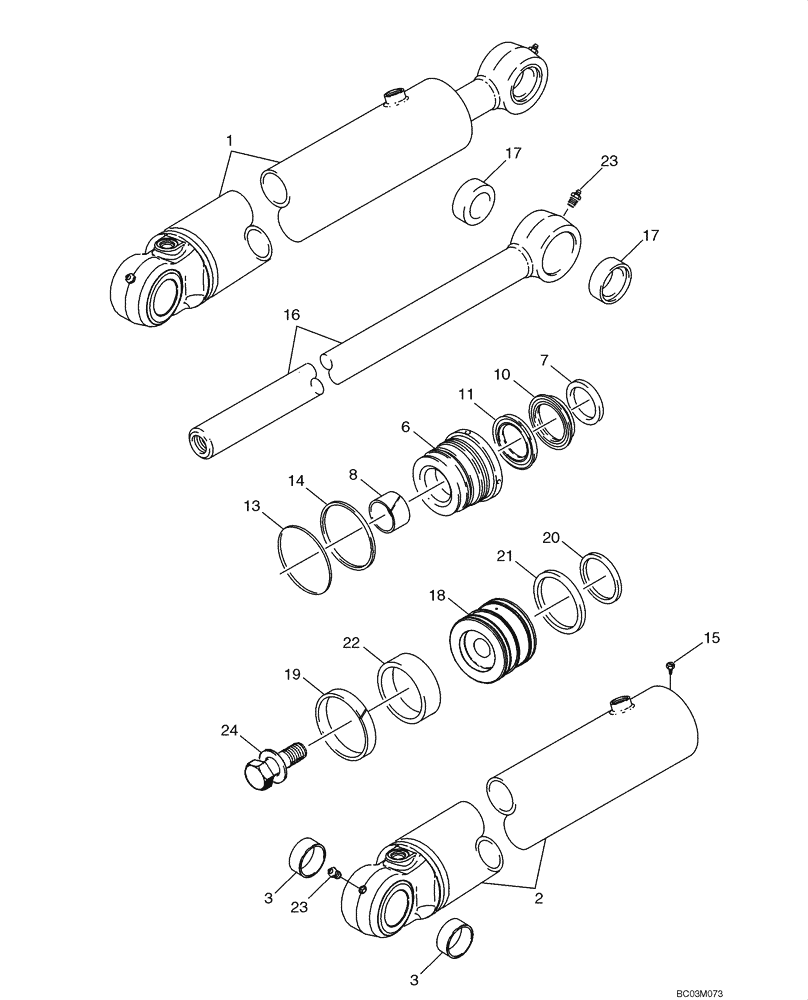

Запчасти Case 580M (08-63) - CYLINDER ASSY - BACKHOE BOOM (08) - HYDRAULICS

1

189653A2

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 981.5mm Stroke

114 ID x 982 mm strk, Incl. Ref 2 - 24

1шт.

1

189653A2R

REMAN-HYD CYLINDER

580M SERIES 3 LOADER BACKHOE TIER 3 (NA) (2/08-)

1шт.

1

189653A2C

CORE-HYD CYLINDER

Return Number

1шт.

2

397080A1

HYD CYL SLEEVE

Incl. Ref 3

1шт.

3

D149079

BUSHING,50.19mm ID x 60mm OD x 34mm L

50 x 34 mm lg

2шт.

6

127862A2

CYLINDER END CAP

GLAND

1шт.

182218A1

SEAL KIT

Incl. Ref 7 - 14, 19 - 22

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

1шт.

8

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

1шт.

1542877C1

SEAL KIT,57.2mm Rod

Rod and Buffer; Incl. Ref 10, 11; Not Serviced Separately; Order 182218A1 Seal Kit

1шт.

10

NSS

NOT SOLD SEPARAT

Rod Seal; Order 182218A1 Seal Kit

1шт.

11

NSS

NOT SOLD SEPARAT

Buffer Seal; Order 182218A1 Seal Kit

1шт.

13

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

1шт.

14

G109300

RING,113.46mm ID x 118.97mm OD x 1.17mm Thk

Backup

1шт.

15

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

16

182109A1

PISTON ROD

57 mm (2-1/4 in) dia, Incl. Ref 17

1шт.

17

D149079

BUSHING,50.19mm ID x 60mm OD x 34mm L

50 x 34 mm lg

2шт.

18

189657A2

JACK PISTON

1шт.

19

182116A1

RING,Locking, 108.64mm ID x 118.3mm OD x 6.33mm Thk

Cast Iron

1шт.

20

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

SEALRING

1шт.

21

G101994

SEAL,RECTANGULAR, 111.02mm ID x 115.75mm OD x 6.96mm Thk

2шт.

22

G101996

WEAR RING,4.5" OD x 0.75" Thk

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

24

86982442

SPECIAL BOLT,Hex, 12, 1 1/4 x 3.25"

1,25 x 3,25; Incl. Washer

1шт.
