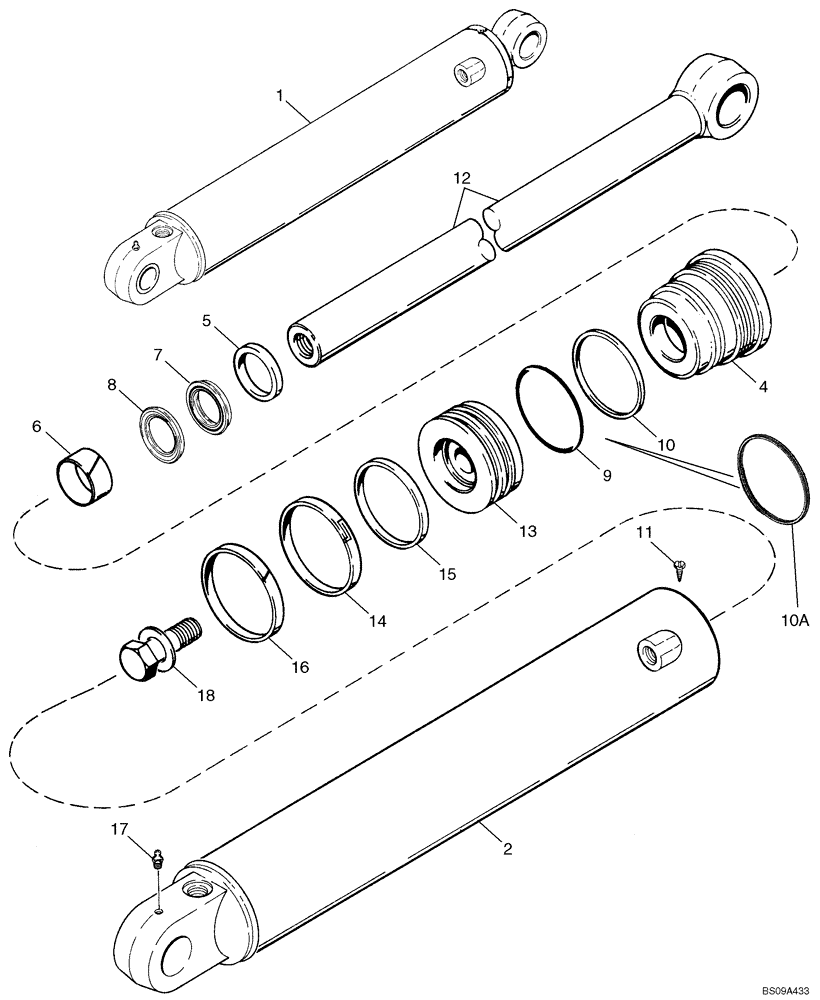

Запчасти Case 580M (08-61) - CYLINDER ASSY - BACKHOE STABILIZER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
195503A1
CYLINDER ASSY.,Double Acting, 50.8mm Rod, 553.3mm Stroke
102 ID x 553 mm strk, RH, Incl. Ref 2 - 18
1шт.
1
195503A1R
REMAN-HYD CYLINDER
580M SERIES 3 LOADER BACKHOE TIER 3 (NA), 102 ID x 553 mm strk, RH (2/08-)
1шт.
1
195503A1C
CORE-HYD CYLINDER
Return Number
1шт.
1
195504A1
CYLINDER,Double Acting, 50.8mm Rod, 553.3mm Stroke
102 ID x 553 mm strk, LH, Incl. Ref 2 - 18
1шт.
1
195504A1R
REMAN-HYD CYLINDER
580M SERIES 3 LOADER BACKHOE TIER 3 (NA), LH (2/08-)
1шт.
1
195504A1C
CORE-HYD CYLINDER
Return Number
1шт.
2
195505A1
TUBE,101.47mm Bore Dia
RH
1шт.
2
195506A1
TUBE,101.47mm Bore Dia
LH
1шт.
4
128135A2
GLAND
1шт.
SEAL KIT
Seal, Incl. Ref 5 - 10, 14 - 16, No Longer Used, For Service Order 84155087 Seal Kit
1шт.
84155087
SEAL KIT
Repair; Incl. Ref 5 - 8, 10A, 14 - 16
1шт.
5
D95144
WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
Wiper
1шт.
6
G101533
WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk
1шт.
SEAL KIT,50.8mm Rod
Rod and Buffer Seal; Incl Ref 7, 8; Not Serviced Separately; Order 1543269C1 or 84155087 Seal Kit
1шт.
7
NSS
NOT SOLD SEPARAT
Rod Seal; Order 1543269C1 or 84155087 Seal Kit
1шт.
8
NSS
NOT SOLD SEPARAT
Buffer Seal; Order 1543269C1 or 84155087 Seal Kit
1шт.
9
238-5239
O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro
Replaced by ref# 10A
1шт.
10
G109299
BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk
Replaced by ref# 10A
1шт.
10a
87615482
SEAL,93.85mm ID x 104.57mm OD x 4.85mm Thk
Static Head
1шт.
11
86642312
SELF-TAP SCREW,Hex, #8 - 32 x 3/8"
1шт.
12
123726A1
PISTON ROD
51 mm (2 in) dia
1шт.
13
G108123
PISTON,100.94mm Bore, 50.9mm Rod, 50.65mm W
1шт.
14
G102285
SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk
1шт.
15
G100440
RING,Square, 5.28mm Thk x 88.01mm ID
1шт.
16
G100448
RING,101.6mm OD, Ext
1шт.
17
219-1
LUBE NIPPLE,1/8" - 27 NPTF
1шт.
18
86982440
SPECIAL BOLT,Hex, 1-1/4' x 2.75
1,25 x 2,75; Incl. Washer
1шт.
Выбрано товаров: 27
