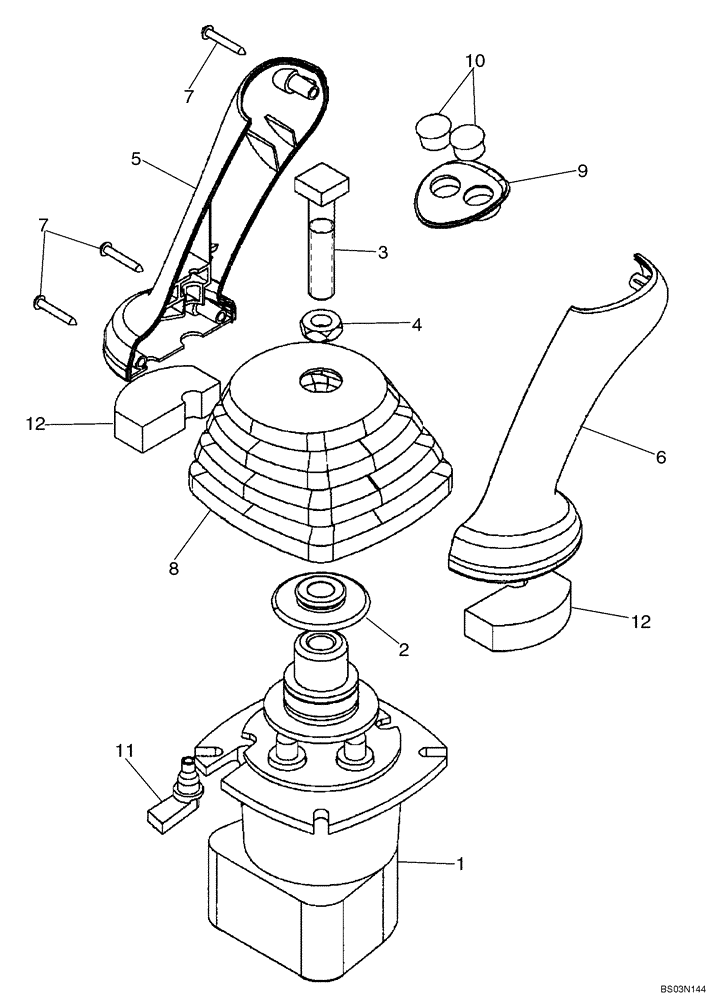

Запчасти Case 580M (08-53) - VALVE, JOYSTICK (PILOT CONTROLS) (RIGHT-HAND) WITHOUT EXTENDABLE DIPPER (08) - HYDRAULICS

87685954

JOYSTICK

Pilot Controls, RH; Without Extendable Dipper; Incl. Ref 1 - 12; Part Number Stamped On Valve Base

1шт.

1

87687141

PILOT VALVE

Includes 87473380, 87586772, 87586773

1шт.

1

87687141R

REMAN-HYD VALVE

Includes 87473380, 87586772, 87586773

1шт.

1

87687141C

CORE-VALVE HYD

Core Return Number

1шт.

2

87436225

RETAINER,12.5mm ID, 46mm OD

Control Boot

1шт.

87473380

GUIDE

Plunger Assy, Guide

4шт.

87586772

PLATE

Spring

4шт.

87586773

KIT

Set of 4 Return Springs

1шт.

3

87428023

BOLT,Square Head, M12 x 1.75 x 60

Square Head

1шт.

4

87037944

THIN NUT,Thin, M12 x 1.75, Cl 05

1шт.

5

87308838

HANDLE GRIP

Joystick Control Handle

1шт.

6

87308839

HANDLE GRIP

Joystick Control Handle

1шт.

7

15687475

SELF-TAP SCREW,Pan Hd, M3.5 x 25mm, SST

3шт.

8

87443722

BOOT

Joystick Control

1шт.

9

87435242

BEZEL

Switch Mounting

1шт.

10

86625128

PLUG,Dome, .562" hole, Nylon

2шт.

11

87451448

GROMMET

Wire

1шт.

12

87435506

SEAL,52mmL

Pilot Control Handle, Lower

2шт.
