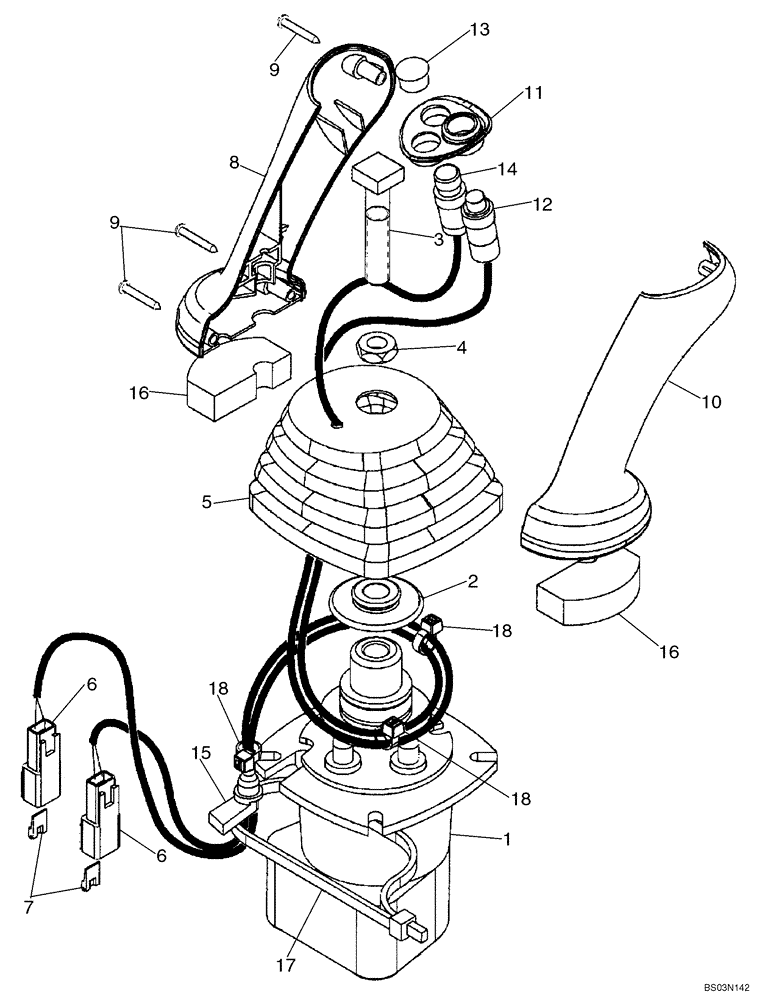

Запчасти Case 580M (08-51) - VALVE, JOYSTICK (PILOT CONTROLS) (LEFT-HAND) WITH HORN & UNI-DIRECTIONAL BUTTONS (08) - HYDRAULICS

87685953

JOYSTICK

Pilot Controls, LH; With Horn and Uni-Directional Buttons; Incl. Ref 1 - 18; Part Number Stamped On Valve Base

1шт.

1

87687141

PILOT VALVE

Includes 87473380, 87586772, 87586773

1шт.

1

87687141R

REMAN-HYD VALVE

Includes 87473380, 87586772, 87586773

1шт.

1

87687141C

CORE-VALVE HYD

Core Return Number

1шт.

87473380

GUIDE

Plunger Assy, Guide

4шт.

87586772

PLATE

Spring

4шт.

87586773

KIT

Set of 4 Return Springs

1шт.

2

87436225

RETAINER,12.5mm ID, 46mm OD

Control Boot

1шт.

3

87428023

BOLT,Square Head, M12 x 1.75 x 60

Square Head

1шт.

4

87037944

THIN NUT,Thin, M12 x 1.75, Cl 05

1шт.

5

87443721

BOOT

Control Handle

1шт.

6

225315C1

ELEC CONNECTOR,Male, 2 Pin

2шт.

7

225318C1

ELEC CONNECTOR,2 Pin

Connector

2шт.

8

87308838

HANDLE GRIP

Joystick Control Handle

1шт.

9

15687475

SELF-TAP SCREW,Pan Hd, M3.5 x 25mm, SST

3шт.

10

87308839

HANDLE GRIP

Joystick Control Handle

1шт.

11

87435243

BEZEL

Switch Mounting

1шт.

12

87437372

SWITCH ASSY

Push Button Horn

1шт.

13

86625128

PLUG,Dome, .562" hole, Nylon

1шт.

14

87437373

SWITCH ASSY

Push Button Uni-Directional Auxiliary Hydraulic Switch

1шт.

15

87424267

GROMMET

Wire

1шт.

16

87435506

SEAL,52mmL

Pilot Control Handle Seal, Lower

2шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.
