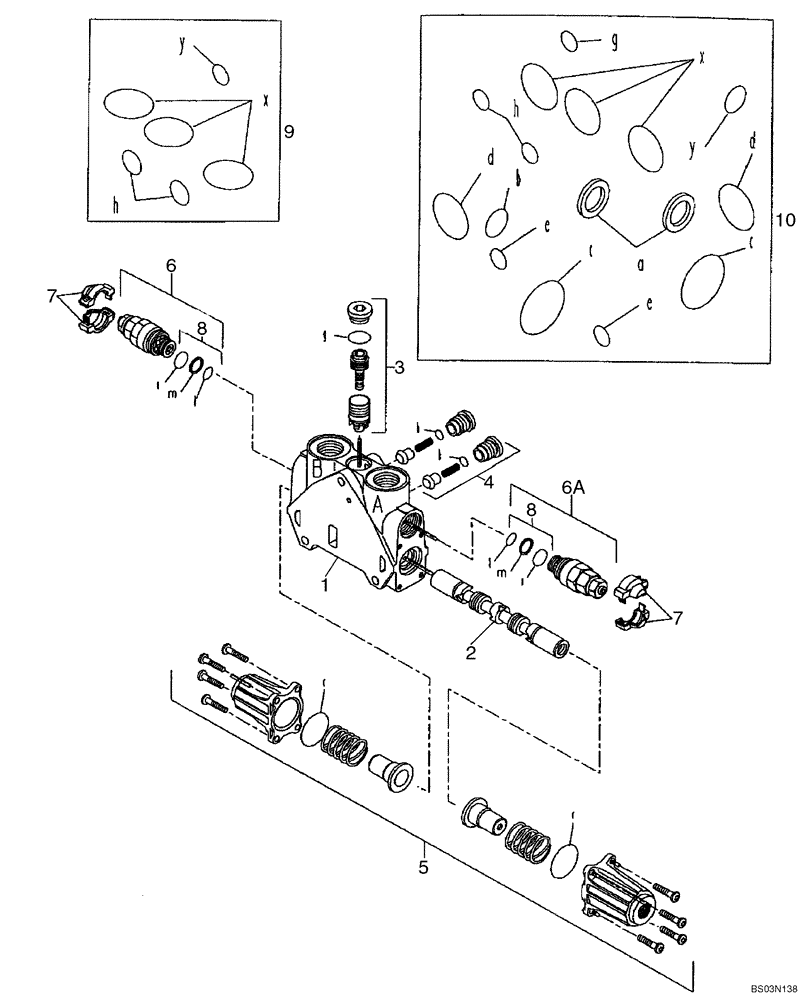

Запчасти Case 580M (08-44) - VALVE SECTION - BACKHOE BUCKET (WITH PILOT CONTROLS) (08) - HYDRAULICS

85826365

HYD VALVE SECTION

Bucket; Incl. Ref 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

85819378

KIT

Pressure Compensator; Component Parts Not Serviced Separately

1шт.

4

85811938

KIT,Check Valve

Component Parts Not Serviced Separately

2шт.

5

85826344

KIT,Operation

End Cap; Component Parts Not Serviced Separately

1шт.

6

85812116

VALVE PRESSURE RELIE

Side B; Some Component Parts Not Serviced Separately; Serviceable Includes 85811933, Ref 8 Kit

1шт.

6a

85826905

VALVE PRESSURE RELIE

Side A; Some Component Parts Not Serviced Separately; Serviceable Includes 85811933, Ref 8 Kit

1шт.

7

85811934

COVER,Half, Orange

2шт.

7

85811935

COVER,Half, Blue

2шт.

8

85811933

SEAL KIT,Secondary Valve

Includes (2) O-Rings, (1) Thrust Ring; Component Parts Not Serviced Separately

2шт.

9

85819148

SEAL KIT,Between Control Valve Sections

Includes (6) O-Rings; Component Parts Not Serviced Separately

1шт.

10

85824281

SEAL KIT,Control Valve Section, Complete

Includes (13) O-Rings, (2) Lip Seals; Component Parts Not Serviced Separately

1шт.
