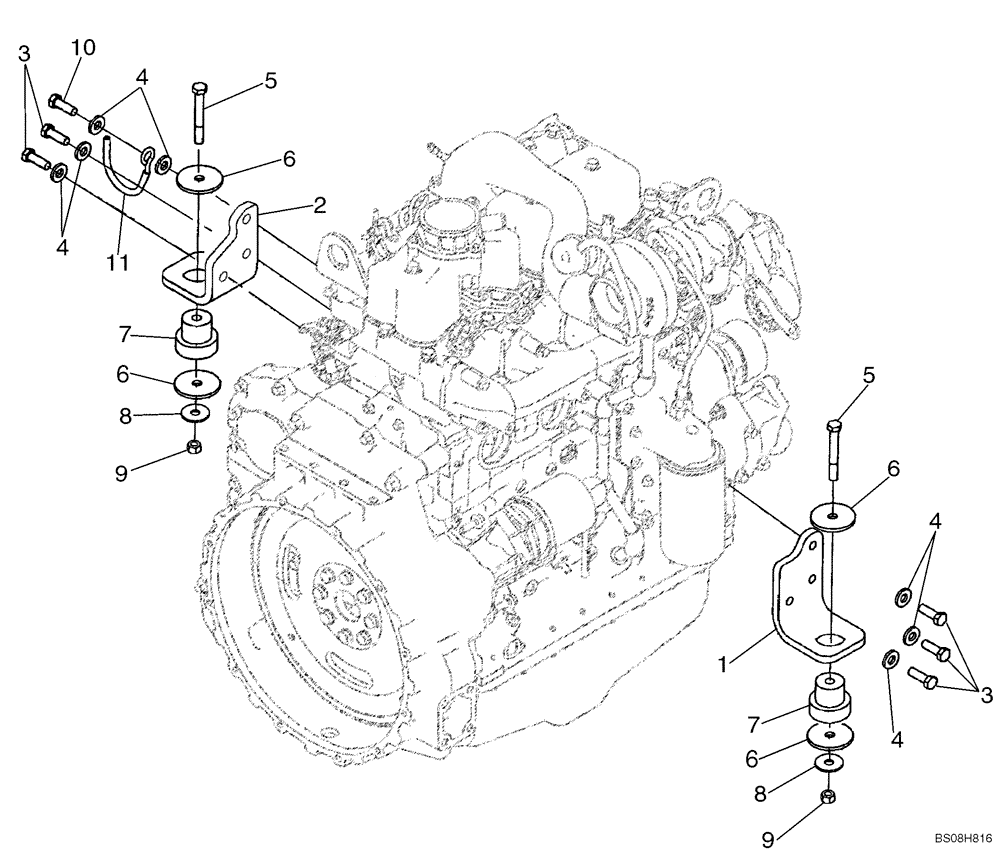

Запчасти Case 580M (02-07) - ENGINE - MOUNTING (02) - ENGINE

84149866

ENGINE,63kW, 4.5L, 4 Cylinders, W/ Turbocharger

85 hp, Internal Intake EGR; Bosch Injection Pump; Turbocharged Engine; Includes Parts On Figures 02-08 - 02-42, 03-04 - 03-11; Replaces 87603948

1шт.

84149866ER

REMAN-REPLACEMENT EN

580M Series 3 w/NEF 4 Cyl., 2 Valve, Tier 3, Engine

1шт.

84149866EPAC

CORE-EPA ENGINE

Return Number

1шт.

84149866R

REMAN-REPLACEMENT EN,63kW, 4.5L, 4 Cylinders, W/ Turbocharger

580M Series 3 w/NEF 4 Cyl., 2 Valve, Tier 3, Engine

1шт.

84149866C

CORE-ENGINE

Return Number

1шт.

1

87735093

BRACKET, SUPPORTING

RH; Replaces 87411319 In This Application

1шт.

2

87550221

ENGINE MOUNT

LH; Replaces 87735092

1шт.

3

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

5шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

7шт.

5

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

2шт.

6

85801585

SEALING WASHER,13mm ID x 65mm OD x 5mm Thk

2-4шт.

7

87488318

RUBBER MOUNTING

Insulator, Rubber Mount; Replaces 87416966 In This Application

2шт.

8

85802618

SEALING WASHER,13mm ID x 41mm OD x 3mm Thk

2шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

10

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.

11

87431799

SUPPORT

Hose

1шт.
