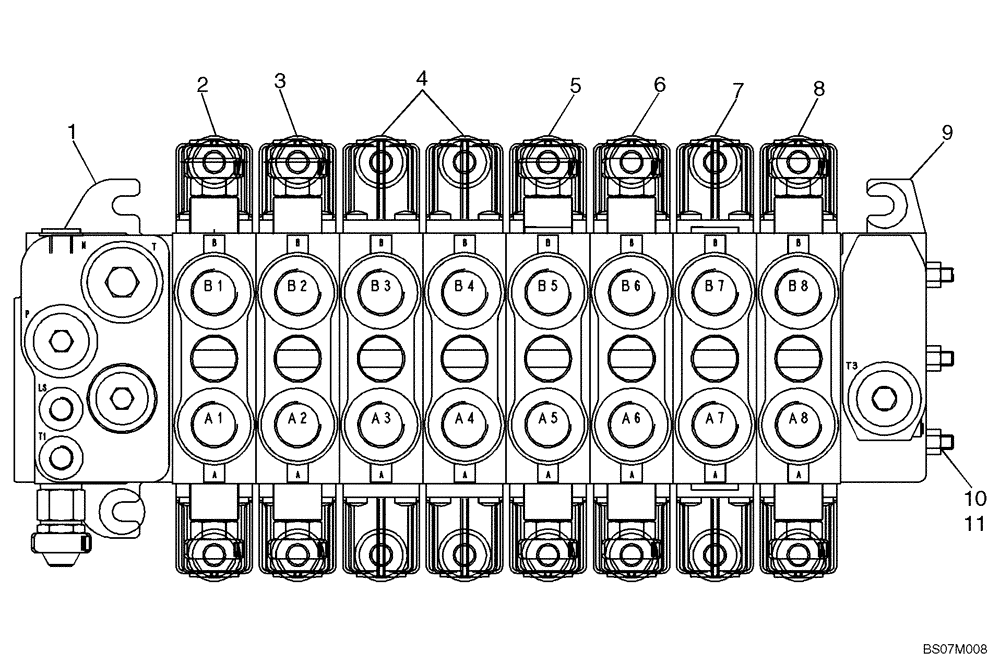

Запчасти Case 580M (08-39) - VALVE ASSY - BACKHOE CONTROL, 8 SPOOL (W/ EXT DIPPER, W/ AUX HYDS, W/ PILOT CONTROLS) (08) - HYDRAULICS

87577349

CONTROL VALVE

Backhoe 8 Spool; Rexroth No. 08 403 271; Check Data Plate On Valve For Part Number; Incl. Ref 1 - 11

1шт.

1

87441495

HYD VALVE SECTION

Inlet Section; With Orifice Threaded In LS Cavity; See Figure 08-43A

1шт.

2

85826339

HYD VALVE SECTION

Swing Section; See Figure 08-44

1шт.

3

85826337

HYD VALVE SECTION

Boom Section; See Figure 08-45

1шт.

4

87617618

HYD VALVE SECTION

Stabilizer Section; Without Flow Sharing to Provide Open Center Performance; 87577349 Valve; See Figure 08-46; If Used

2шт.

5

85826338

HYD VALVE SECTION

Dipper Section; See Figure 08-47

1шт.

6

85826365

HYD VALVE SECTION

Bucket Section; See Figure 08-48

1шт.

7

85826341

HYD VALVE SECTION

Extendable Dipper Section; See Figure 08-49

1шт.

8

85826342

HYD VALVE SECTION

Auxiliary Section; See Figure 08-50

1шт.

9

NSS

NOT SOLD SEPARAT

Outlet Section

1шт.

10

87447477

SET OF PARTS

Tie Bolt

3шт.

11

280136

NUT,3/8"-16, G8

3шт.
