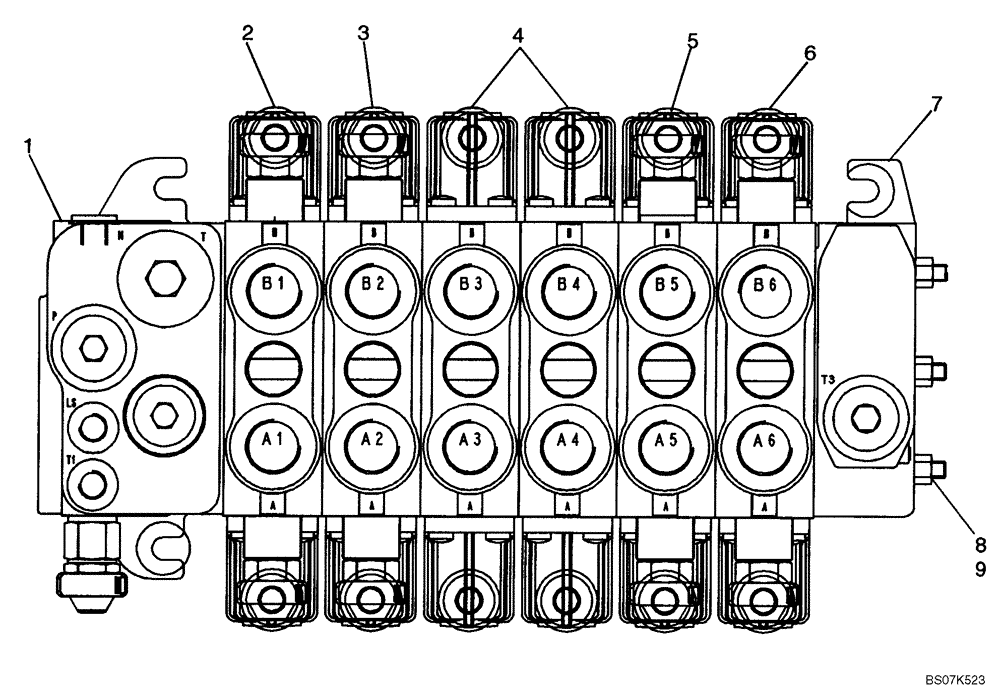

Запчасти Case 580M (08-36) - VALVE ASSY - BACKHOE CONTROL, 6 SPOOL (W/O EXT DIPPER, W/ OR W/O AUX HYDS, W/ PILOT CONTROLS) (08) - HYDRAULICS

87577343

CONTROL VALVE

Backhoe 6 Spool; Rexroth No. 08 403 273; Check Data Plate On Valve For Part Number; Incl. Ref 1 - 9

1шт.

1

87441495

HYD VALVE SECTION

Inlet Section; With Orifice Threaded In LS Cavity; See Figure 08-39A

1шт.

2

85826339

HYD VALVE SECTION

Swing Section; See Figure 08-40

1шт.

3

85826337

HYD VALVE SECTION

Boom Section; See Figure 08-41

1шт.

4

87617618

HYD VALVE SECTION

Stabilizer Section; Without Flow Sharing to Provide Open Center Performance; See Figure 08-42

2шт.

5

85826338

HYD VALVE SECTION

Dipper Section; See Figure 08-43

1шт.

6

85826365

HYD VALVE SECTION

Bucket Section; See Figure 08-44

1шт.

7

NSS

NOT SOLD SEPARAT

Outlet Section

1шт.

8

NSS

NOT SOLD SEPARAT

Tie Bolt

3шт.

9

NSS

NOT SOLD SEPARAT

Nut

3шт.
