Артикул
Название
Примечание
Количество
REF
INSTRUCTION

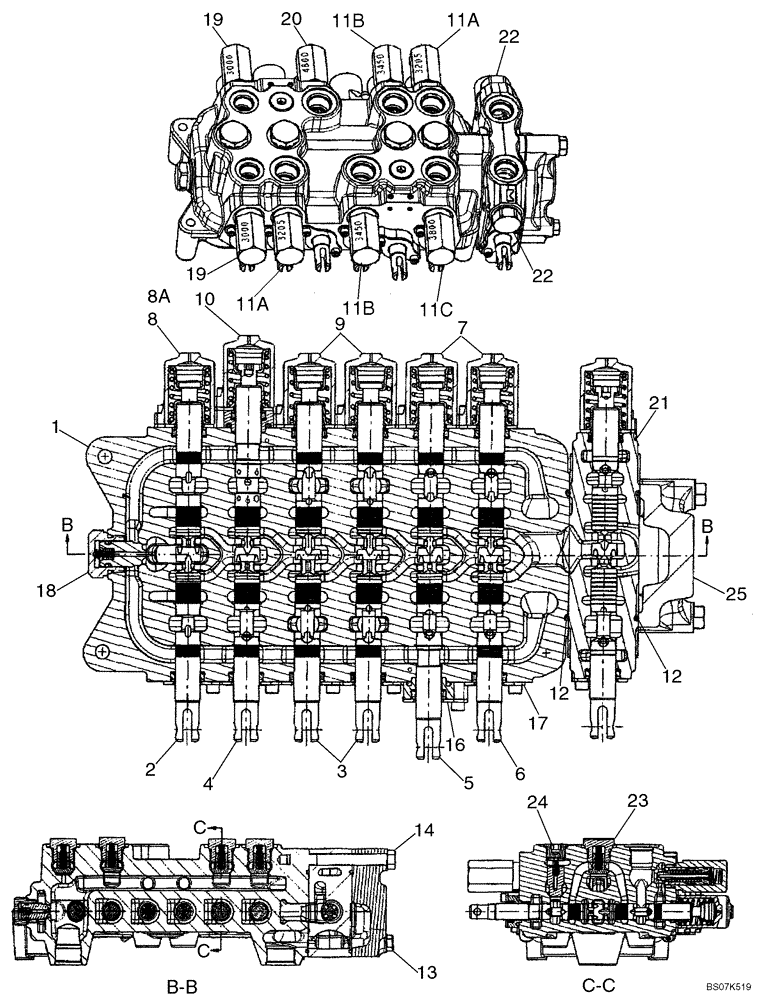

MODELS WITHOUT EXTENDABLE DIPPER, WITH AUXILIARY HYDRAULICS, WITHOUT PILOT CONTROLS
1шт.
87555536
HYDRAULIC VALVE
7 Spool, Foot Swing; Incl. Ref 1 - 8, 9 - 25; If Used
1шт.
87555530
HYDRAULIC VALVE
7 Spool, Hand Swing; Incl. Ref 1 - 7, 8A, 9 - 24, 25A; If Used
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL, SWING
1шт.
3
NSS
NOT SOLD SEPARAT
SPOOL, STABILIZER, Left-Hand and Right-Hand
2шт.
4
NSS
NOT SOLD SEPARAT
SPOOL, BOOM
1шт.
5
NSS
NOT SOLD SEPARAT
SPOOL, DIPPER
1шт.
6
NSS
NOT SOLD SEPARAT
SPOOL, BUCKET
1шт.
7
87426241
KIT
Cap Assembly, Bucket and Dipper Spool End; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87444567 Spring, (2) 87455541 Screw
2шт.
8
87428500
KIT
Cap Assembly, Swing Spool End; 87555536 Foot Swing Valve; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87429151 Centering Spring, (2) 87455541 Screw
1шт.
8a
87426241
KIT
Cap Assembly, Swing Spool End; 87555530 Hand Swing Valve; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87444567 Spring, (2) 87455541 Screw
1шт.
9
87428497
KIT
Cap Assembly, Stabilizer Spool Ends; Some Component Parts Not Serviced Separately; Serviceable Includes (2) 87454547 O-Ring, (1) 87454548 Seal, (1) 87455533 Spring, (2) 87455541 Screw
2шт.
10
87433029
KIT
Cap Assembly, Boom Spool End; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87444567 Spring, (1) 87455538 O-Ring, (2) 87455545 Screw
1шт.
11a
87450978
VALVE PRESSURE RELIE
Circuit; 3205 psi; Component Parts Not Serviced Separately; Includes 87455549 Seal Kit
2шт.
11b
87450979
VALVE PRESSURE RELIE
Circuit; 3450 psi; Component Parts Not Serviced Separately; Includes 87455549 Seal Kit
2шт.
11c
87450980
VALVE PRESSURE RELIE
Circuit; 3800 psi; Component Parts Not Serviced Separately; Includes 87455549 Seal Kit
1шт.
12
87428495
O-RING,3.50" ID x 3.76" OD x .139" thk
Auxiliary/Outlet Section
2шт.
13
87428476
SCREW,Hex
2шт.
14
87428477
SCREW,Hex
1шт.
16
87440815
PLATE
Seal, Dipper Spool; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87455538 O-Ring, (2) 87455534 Screw
1шт.
17
87440814
KIT
Seal; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (2) 87455540 Screw
5шт.
18
81868381
CHECK VALVE,1-1/16" - 12
Anti-Void Valve; Component Parts Not Serviced Separately; Includes 87455580 Seal Kit
1шт.
19
87428490
VALVE PRESSURE RELIE
3000 psi; Component Parts Not Serviced Separately; Includes 87455549 Seal Kit
2шт.
20
87566237
VALVE PRESSURE RELIE
4800 psi; Component Parts Not Serviced Separately; Includes 87455549 Seal Kit
1шт.
21
87428501
HYD VALVE SECTION
Spool Section Assembly; Auxiliary Hydraulics; Incl. Ref 21A - 21I, Which Are Not Illustrated; Remainder Component Parts Not Serviced Separately
1шт.
21a
87433028
END ASSY.
Spool; Incl. Ref 21B - 21E, Which Are Not Illustrated; Remainder Components Not Serviced Separately
1шт.
21b
87454547
O-RING
1шт.
21c
87454548
WIPER SEAL
Wiper
1шт.
21d
87429150
VALVE SPRING
1шт.
21e
87455541
HEX SOC SCREW
2шт.
21f
87428495
O-RING,3.50" ID x 3.76" OD x .139" thk
1шт.
21g
87455564
VALVE POPPET
Load Check
1шт.
21h
87455565
VALVE SPRING
Load Check
1шт.
21i
83981068
STOP PLUG,Hex, 1/16 - 12 UN
2шт.
22
83981068
STOP PLUG,Hex, 1/16 - 12 UN
Component Parts Not Serviced Separately; Now Included With Ref 21
2шт.
23
87426238
VALVE, CHECK
Hex Head; Component Parts Not Serviced Separately; Includes (1) 87455975 O-Ring
4шт.
24
87428486
VALVE, CHECK
Hex Socket Head; Component Parts Not Serviced Separately; Includes (1) 87455974 O-Ring
2шт.
25
87433030
OUTLET
Outlet Section Assembly; Component Parts Not Serviced Separately
1шт.
Выбрано товаров: 39
