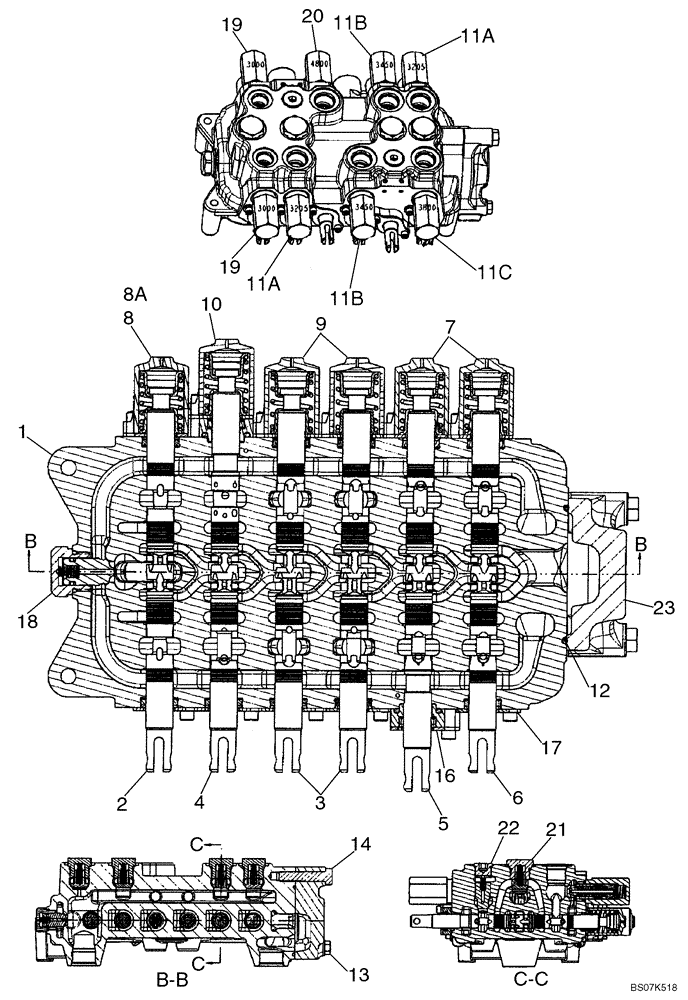

Запчасти Case 580M (08-32) - VALVE ASSY - BACKHOE CONTROL, 6 SPOOL (W/O EXT DIPPER, W/O AUX HYDS, W/O PILOT CONTROLS) (08) - HYDRAULICS

REF

INSTRUCTION

MODELS WITHOUT EXTENDABLE DIPPER, WITHOUT AUXILIARY HYDRAULICS, WITHOUT PILOT CONTROLS

1шт.

87555499

HYDRAULIC VALVE

6 Spool, Foot Swing; Incl. Ref 1 - 8, 9 - 23; If Used

1шт.

87555505

HYDRAULIC VALVE

6 Spool, Hand Swing; Incl. Ref 1 - 7, 8A, 9 - 23; If Used

1шт.

84304995R

REMAN-HYD VALVE

Reman for New P/N 87555505

1шт.

84304995C

CORE-VALVE HYD

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL, SWING

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL, STABILIZER, Right-hand and Left-Hand

2шт.

4

NSS

NOT SOLD SEPARAT

SPOOL, BOOM

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL, DIPPER

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL, BUCKET

1шт.

7

87426241

KIT

Cap Assembly, Bucket and Dipper Spool End; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87444567 Spring, (2) 87455541 Screw

2шт.

8

87428500

KIT

Cap Assembly, Swing Spool End; 87555499 Foot Swing Valve; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87429151 Centering Spring, (2) 87455541 Screw

1шт.

8a

87426241

KIT

Cap Assembly, Swing Spool End; 87555505 Hand Swing Valve; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87444567 Spring, (2) 87455541 Screw

1шт.

9

87428497

KIT

Cap Assembly, Stabilizer Spool Ends; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Rings, (1) 87454548 Seal, (1) 87455533 Spring, (2) 87455541 Screw

2шт.

10

87433029

KIT

Cap Assembly, Boom Spool End; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87444567 Spring, (1) 87455538 O-Ring, (2) 87455545 Screw

1шт.

11a

87450978

VALVE PRESSURE RELIE

Circuit; 3205 psi; Component Parts Not Serviced Separately; Includes 87455549 Seal Kit

2шт.

11b

87450979

VALVE PRESSURE RELIE

Circuit; 3450 psi; Component Parts Not Serviced Separately; Includes 87455549 Seal Kit

2шт.

11c

87450980

VALVE PRESSURE RELIE

Circuit; 3800 psi; Component Parts Not Serviced Separately; Includes 87455549 Seal Kit

1шт.

12

87428495

O-RING,3.50" ID x 3.76" OD x .139" thk

O-Ring Seal, Outlet Section

1шт.

13

87428491

SCREW,Hex

Bolt

2шт.

14

87428492

SCREW,Hex

Bolt

1шт.

16

87440815

PLATE

Seal Plate Assembly, Dipper Spool; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87455538 O-Ring, (2) 87455534 Screw

1шт.

17

87440814

KIT

Seal Plate Assembly; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (2) 87455540 Screw

5шт.

18

81868381

CHECK VALVE,1-1/16" - 12

Anti-Void Valve; Component Parts Not Serviced Separately; Includes 87455580 Seal Kit

1шт.

19

87428490

VALVE PRESSURE RELIE

Relief Valve Assembly; 3000 psi; Component Parts Not Serviced Separately; Includes 87455549 Seal Kit

2шт.

20

87566237

VALVE PRESSURE RELIE

Relief Valve Assembly; 4800 psi; Component Parts Not Serviced Separately; Includes 87455549 Seal Kit

1шт.

21

87426238

VALVE, CHECK

Check Valve Assembly; Hex Head; Component Parts Not Serviced Separately; Includes (1) 87455975 O-Ring

4шт.

22

87428486

VALVE, CHECK

Check Valve Assembly; Hex Socket Head; Component Parts Not Serviced Separately; Includes (1) 87455974 O-Ring

2шт.

23

87433030

OUTLET

Outlet Section Assembly; Component Parts Not Serviced Separately

1шт.
