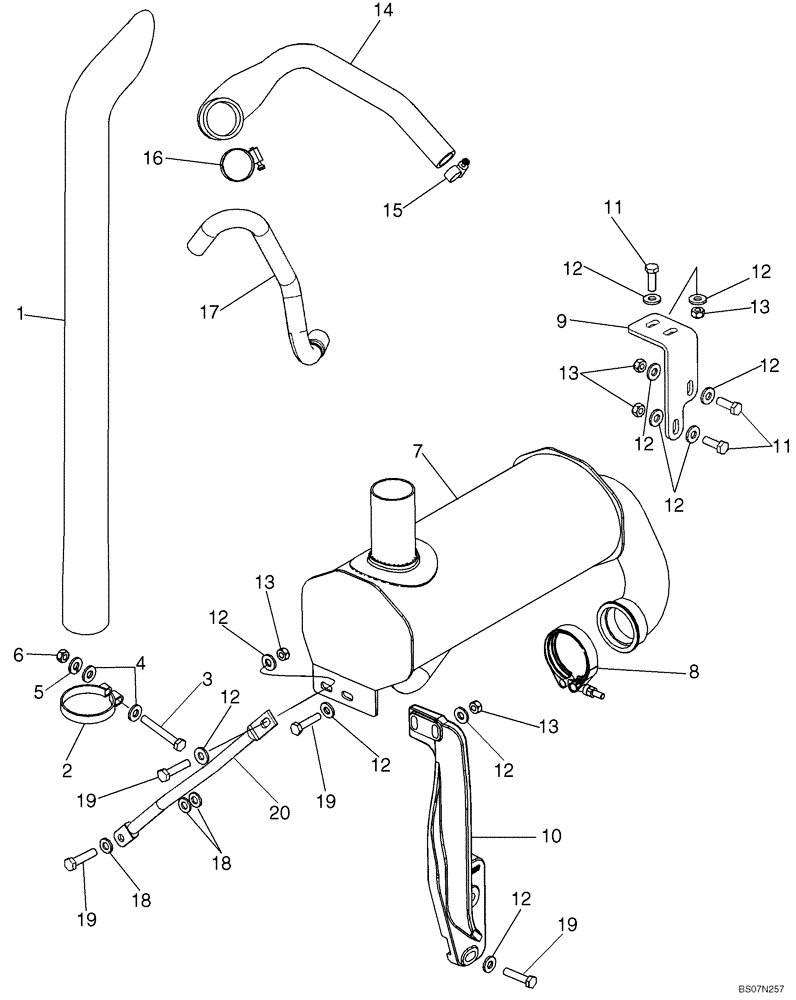

Запчасти Case 580M (02-06) - EXHAUST SYSTEM W/ MUFFLER (02) - ENGINE

1

87309656

EXHAUST SYSTEM PIPE

844 mm (33-1/4 in) Long Stack

1шт.

2

87437804

PIPE CLAMP,94mm ID

Stack

1шт.

3

614-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8, Full Thd

1шт.

4

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

5

892-11010

LOCK WASHER,M10

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

7

87617576

MUFFLER,W/O Spark Arrestor, Aspirated

Aspirated

1шт.

8

A170467

CLAMP,72mm ID

Includes Hardware

1шт.

9

87423531

BRACKET, SUPPORTING

Front Support

1шт.

10

87451167

SUPPORT

Rear Support

1шт.

11

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

12

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

14шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

14

87704858

HOSE,25.40 mm ID, 50.00 mm ID, SAE 20R4 Class D-3

Aspiration

1шт.

15

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

1шт.

16

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

17

87611852

HOSE,17.00 mm ID, 22.00 mm ID x 1270.00 mm, SAE J30R6

1шт.

18

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

19

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

5шт.

20

87442357

BRACE

1шт.
