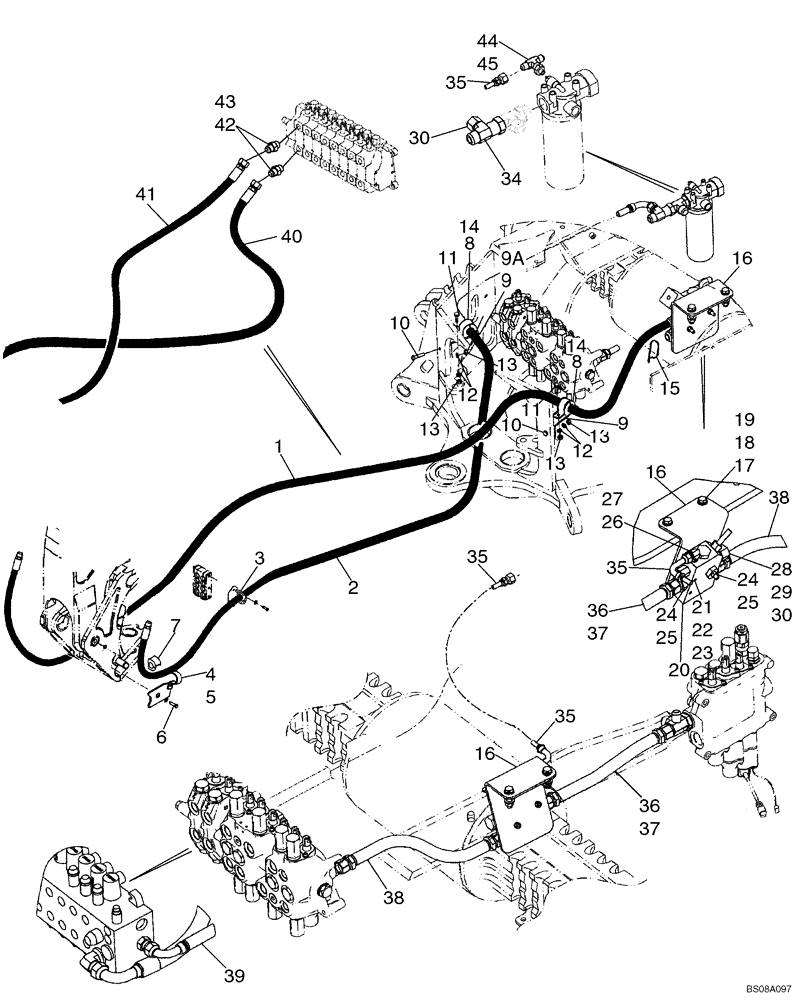

Запчасти Case 580M (08-23) - HYDRAULICS - BACKHOE AUXILIARY (WITHOUT PILOT CONTROLS) (08) - HYDRAULICS

1

87430972

HYDRAULIC HOSE,19.05mm ID x 2467mm L

2467 mm (97-1/8 in); Models With Uni-Directional

1шт.

2

87429387

HYDRAULIC HOSE,19.05mm ID x 2890mm L

2890 mm (113-13/16 in); Models With Uni-Directional

1шт.

3

87431630

BRACKET

2шт.

4

329799A1

SUPPORT

LH

1шт.

5

329797A1

SUPPORT

RH

1шт.

6

604-20045

BOLT,Hex, M20 x 45mm, Cl 8.8

2шт.

7

144477A1

ISOLATOR

2шт.

8

144479A1

CLAMP

2шт.

9

413778A1

BRACKET

45 degree Bend

1-2шт.

9a

282842A1

BRACKET

90 degree Bend

1шт.

10

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

12

892-11010

LOCK WASHER,M10

4шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

14

144477A1

ISOLATOR

2шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

16

87440694

BRACKET

1шт.

17

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

19

829-1412

NUT,M12, Cl 10.9

2шт.

20

87421836

HYDRAULIC VALVE

Auxiliary Uni-Directional Valve; See Figure 08-23A

1шт.

21

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

2шт.

22

892-11008

LOCK WASHER,8mm ID

2шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

24

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 25

2шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

26

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl. Ref 27

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

28

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 29

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

30

218-335

CAP,37 Degree, 1 1/16"-12

2шт.

34

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

1шт.

35

87422948

HYDRAULIC HOSE

930 mm (36-5/8 in)

1шт.

36

87437232

HYDRAULIC HOSE,¾” ID x 370mm L

420 mm (16-9/16 in); Two Spool Loader Valve

1шт.

37

87437231

HYDRAULIC HOSE

370 mm (14-19/32 in); Three Spool Loader Valve

1шт.

38

87422977

HYDRAULIC HOSE

465 mm (18-5/16 in); Power Beyond; Models Without Pilot Controls; Hose Lengthened to 485 mm (19-3/32 in)

1шт.

39

87428814

HYDRAULIC HOSE

458 mm (18-1/32 in); Power Beyond; Models With Pilot Controls

1шт.

40

87423969

HYDRAULIC HOSE,19.05mm ID x 1500mm L

1500 mm (59-1/16 in); Models With Bi-Directional

1шт.

41

87423970

HYDRAULIC HOSE,19.05mm ID x 1725mm L

1725 mm (67-15/16 in); Models With Bi Directional

1шт.

42

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 43

2шт.

43

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

44

218-5511

TEE,37 Degree, 3/4"-16 x 9/16"-18, O-Ring Br

Incl. Ref 45

1шт.

45

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
