Запчасти Case 580M (08-16) - HYDRAULICS - VALVE, PILOT CONTROL AND JOYSTICKS (6 SPOOL, W/O EXT DIPPER, W/ AUX HYDS) (08) - HYDRAULICS

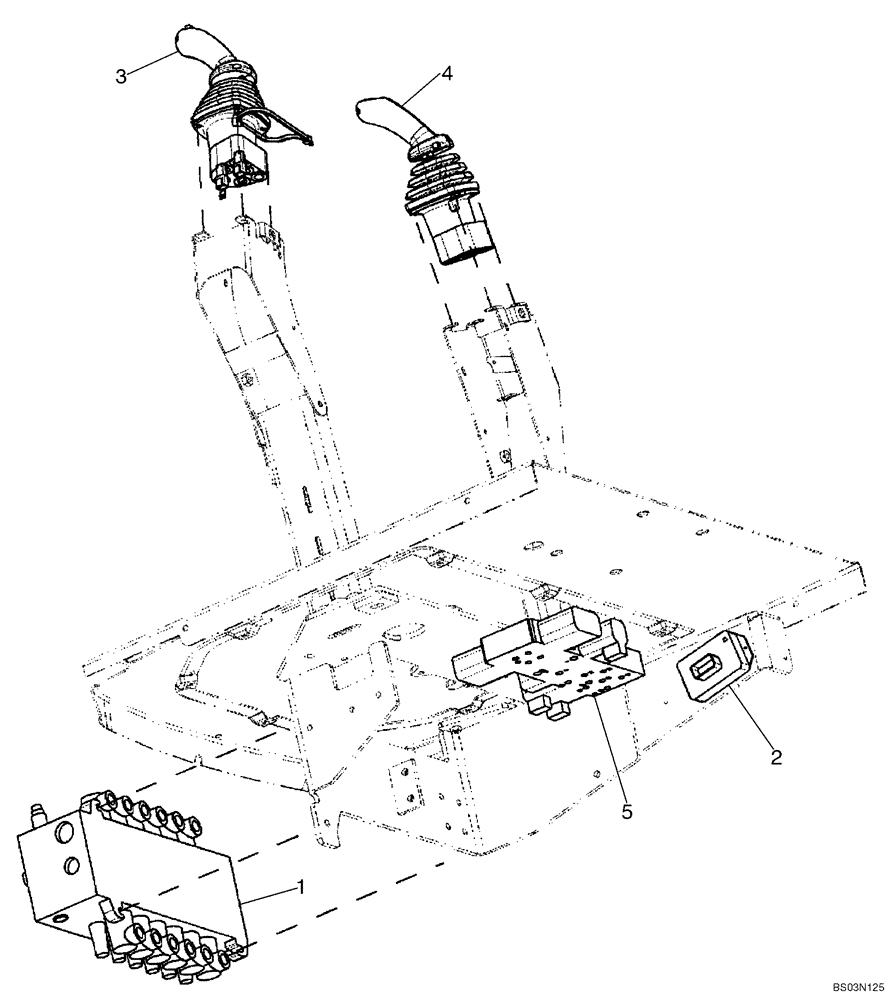

Схема запчастей Case 580M - (08-16) - HYDRAULICS - VALVE, PILOT CONTROL AND JOYSTICKS (6 SPOOL, W/O EXT DIPPER, W/ AUX HYDS) (08) - HYDRAULICS
4
2
1
5
3

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

SIX SPOOL VALVE WITHOUT EXTENDABLE DIPPER; WITH AUTO-UP; WITH AUXILIARY HYDRAULICS, WITH UNI-DIRECTIONAL

1шт.

1

87577343

CONTROL VALVE

Backhoe, 6 Spool; Rexroth No. 08 403 273; See Figure 08-36; For Mounting See Figure 08-22

1шт.

2

87746673

MODULE

Box; Pilot Control Power Supply Module

1шт.

840-1416

SCREW,Pan, M4 x 16mm, Cl 4.8

2шт.

3

87685953

JOYSTICK

LH; With Horn and Uni-Directional Buttons; See Figure 08-51

1шт.

4

87685954

JOYSTICK

RH; See Figure 08-53

1шт.

5

85827472

HYDRAULIC VALVE

Pressure Reducing, 2 Spool; See Figure 08-47

1шт.

Выбрано товаров: 7
