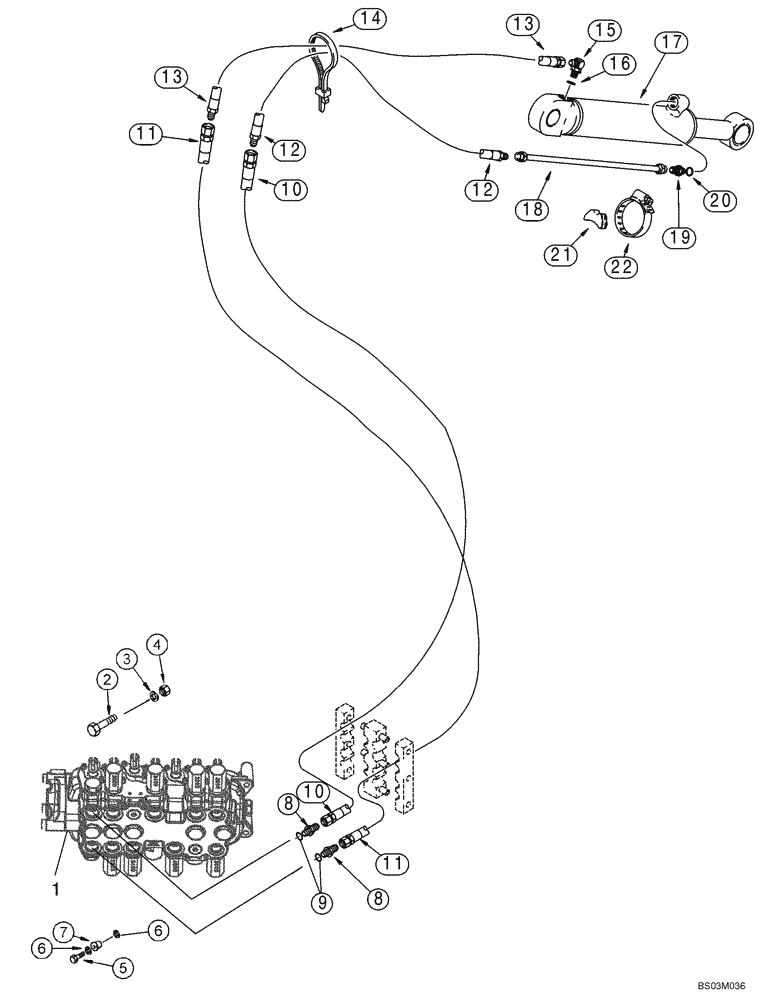

Запчасти Case 580M (08-14) - HYDRAULICS - CYLINDER, BACKHOE EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy, Control; Backhoe Control Valve; For Correct Assembly and Components, See Figures 08-34, 08-35, 08-37, 08-39

1шт.

2

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

3

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

5

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

6

496-41041

WASHER,13/32" x 1 1/8" x .134"

2шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

1шт.

8

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

393354A1

HOSE ASSY.,12.7mm ID x 3073mm L

3073 mm (121 in)

1шт.

11

393357A1

HOSE ASSY.,12.7mm ID x 3073mm L

3073 mm (121 in)

1шт.

12

184617A1

HYDRAULIC HOSE,12.7mm ID x 850mm L

850 mm (33-1/2")

1шт.

13

184616A1

HYDRAULIC HOSE,12.7mm ID x 700mm L

700 mm (27-9/16")

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

1340969C2

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 1068mm Stroke

76 ID x 1068 mm strk, Extendable Dipper, See Figure 08-66

1шт.

17

1340969C2R

REMAN-HYD CYLINDER

Dipper Extention Cylinder - For N.A. Only

1шт.

17

1340969C2C

CORE-HYD CYLINDER

Dipper Extention Cylinder - For N.A. Only

1шт.

18

87439537

TUBE,15.88 mm OD x 1000 mm L

1шт.

19

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. Ref 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

D38648

BLOCK

1шт.

22

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

1шт.
