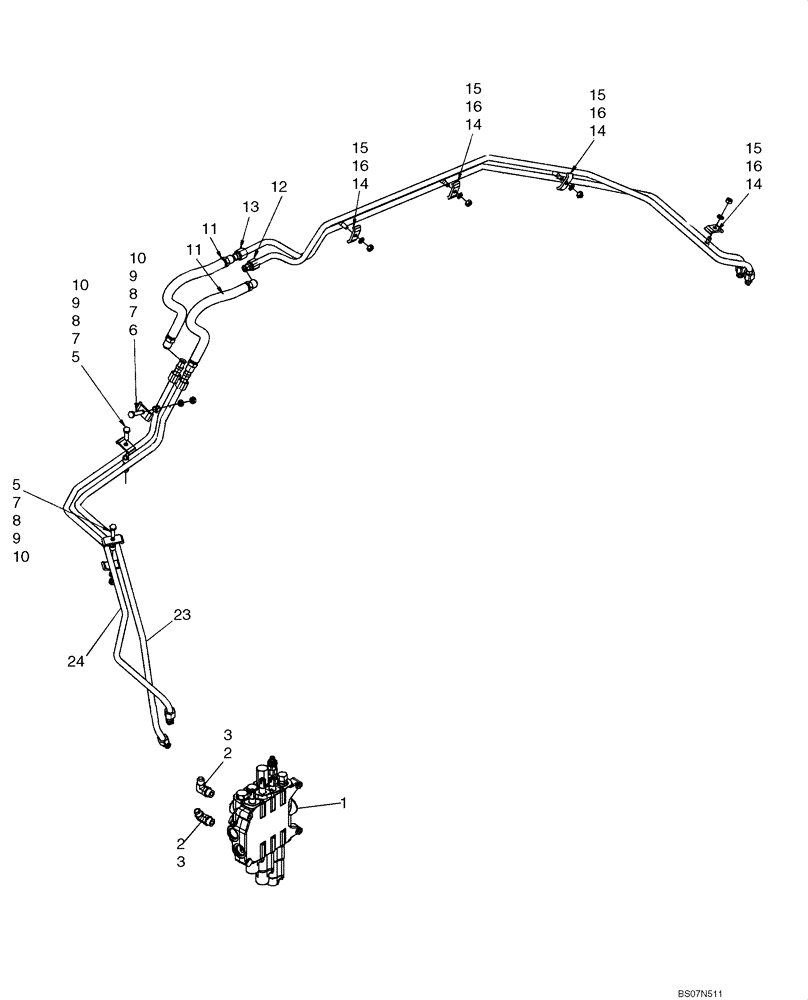

Запчасти Case 580M (08-06) - HYDRAULICS - CYLINDER, LOADER CLAM (08) - HYDRAULICS

1

REF

INSTRUCTION

LOADER CONTROL VALVE; Three Spool; See Figure 08-31 for Valve Options; For Mounting, See Figure 09-01

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

5

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

6

614-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8, Full Thd

1шт.

7

D138055

CLAMP

4шт.

8

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

3шт.

9

892-11010

LOCK WASHER,M10

3шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

11

87429287

HYDRAULIC HOSE,7/8" - 14 JIC, 710mm L

2шт.

12

87716486

HYD TUBE

Upper Clam Port A

1шт.

13

87716488

HYD TUBE

Lower Clam Port B

1шт.

14

D138055

CLAMP

4шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

16

892-11010

LOCK WASHER,M10

4шт.

23

87478483

HYD TUBE,.625 OD

Upper Clam Port A

1шт.

24

87449440

TUBE,.625" OD

Lower Clam Port B

1шт.
